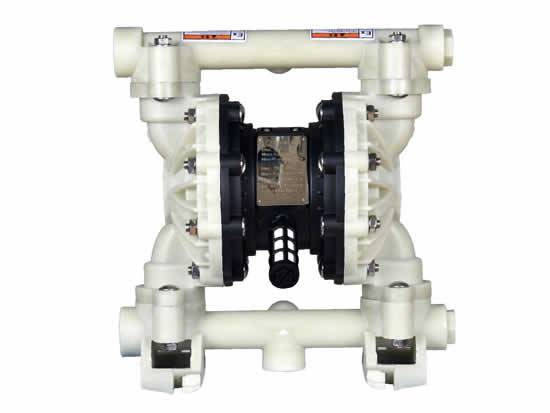

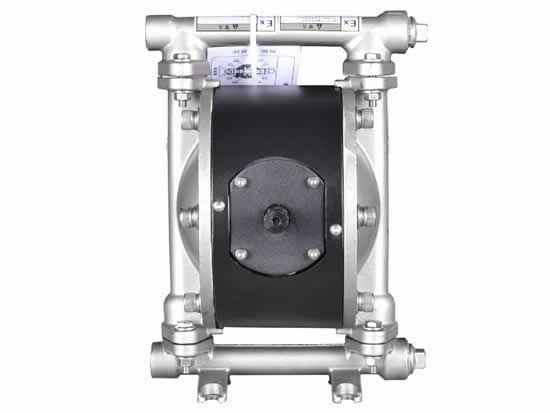

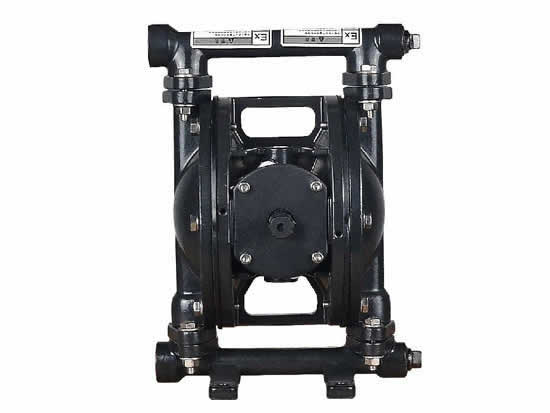

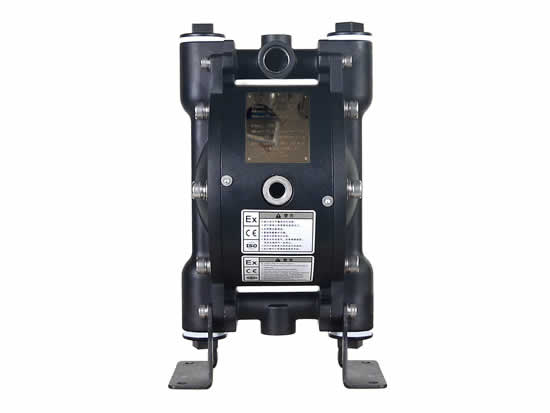

10mm aerodynamic double diaphragm AODD PUMP

Aodd Pumps Made of Cast steel,Aluminum,PP (polypropylene), Stainless steel (SS304, SS 316, SS 316L), PVDF,Teflon.

AODD pumps also called air operated diaphragm pumps, are positive displacement pumps driven and powered by compressed air rather than an electric motor. The AODD pump design means that it can cope with pretty much any fluid from water to viscous slurries to 90% solids including large, shear sensitive particles without degrading them. Air operated double diaphragm pumps are able to benefit from variable flow or pressures just by adjusting the air power supply.

10mm Aodd Pump Air Operated Specifications:

Model SK-10

Max.Flow 5.8gpm (22Lpm)

Max.Working Pressure 100psi(0.7Mpa, 7bar)

Fluid Inlet Size 3/8inch / 10mm

Fluid Outlet Size 3/8inch / 10mm

Air Inlet Size 1/4 inch.bsp(f)

Max.Suction Height(dry suction) 13ft. (4m)

Max.Permitted Grain 0.06 inch (1.5mm)

Max.Air Consumption 6.3 scfm

Every Reciprocating Flow 0.016 gal (0.06L)

Max.Reciprocating Speed 372 cpm
