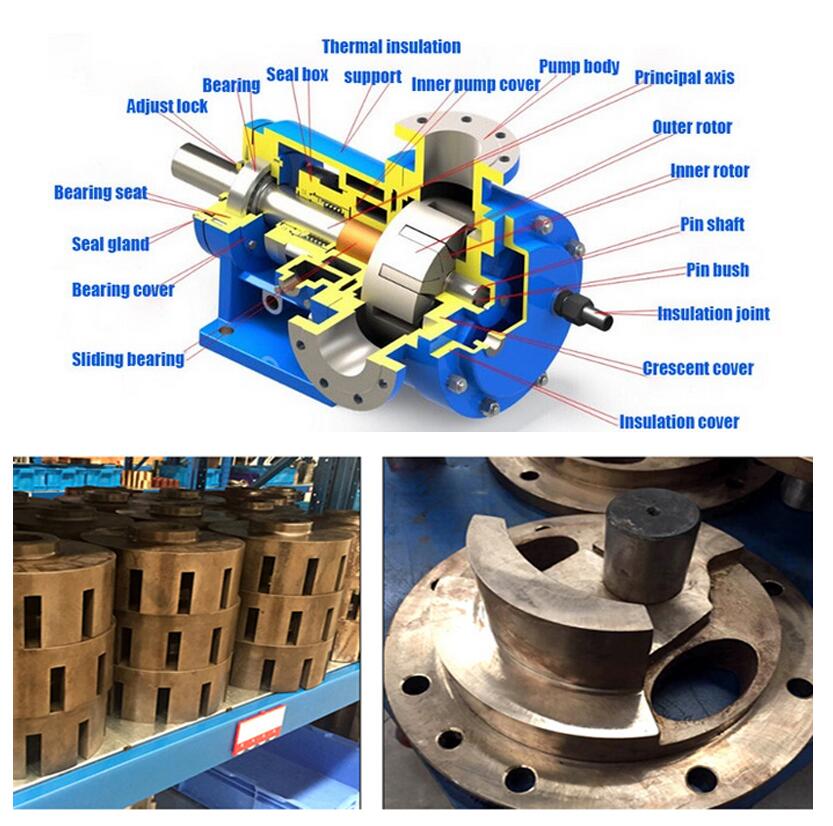

Rotary Twin Gear Pump – NYP Series
The Team of Saiken Pump feeling delighted by informing you about its unique product called NYP Rotary Twin Gear Pump. The company is one of the top manufacturer and exporter of this pump in china. Reliability and quality count at all levels and thus we follow the quality check of all our products at different platforms. NYP Series Rotary Twin Gear Pump excels at handling clean high viscous fluids,for example:Resins,Glue,
Molasses,Chocolates, fats and oils,Resins and polymers,Bitumen and tar,Fuel and lubricants,Solvents,Soap and personal care products.
Molasses,Chocolates, fats and oils,Resins and polymers,Bitumen and tar,Fuel and lubricants,Solvents,Soap and personal care products.
FEATURES:
Manufacturer:China Boutou saiken pumps
MODEL:NYP0.78,NYP2.3,NYP3.6,NYP7.0,NYP24,NYP52,NYP80,NYP111,NYP160,NYP320,NYP220,NYP650,NYP727,NYP1670.
Manufacturer:China Boutou saiken pumps
MODEL:NYP0.78,NYP2.3,NYP3.6,NYP7.0,NYP24,NYP52,NYP80,NYP111,NYP160,NYP320,NYP220,NYP650,NYP727,NYP1670.
Concept: Internal Gear
Brand: SAIKEN PUMPS
Structure: Gear Pump
Pressure: Low Pressure (0-10 Kg/Cm2)
Temperature: 0°C To 250 C
Direction: Multi Direction
Speed: 40 RPM And 1440 RPM (May Vary as per the Application and Use)
Construction Available: Jacketed / Non Jacketed Type
MOC: As per Application of Use (SS,C.S, C.I)
Extra Accessories: Hot Oil Circulation Pump to Keep Pump Warm for Such Special
Applications:excels at handling clean high viscous fluids,for example:Resins,Glue, Molasses,Chocolates, fats and oils,Resins and polymers,Bitumen and tar,Fuel and lubricants,Solvents,Soap and personal care products.
SPECIFICATIONS
Capacity: 0.2m³ /Hr to 150m³ /Hr (12 Different Models)
Port Size: 1/2″to 8″
Shaft Seal: Mechanical / Gland Puck Type
The NYP Series Rotary Twin Gear Pump is best suited for equivalent liquid without solid particles and fibres at temperature below 300 deg C and with the viscosity of 5-300000 cSt viscous liquids.
ADVANTAGES：
1)Steady edlivery without pulsation ,little vibration and noise.
2)Outstanding self-priming abitity.
3)The pump can deliver the varied corrosion mediums if the proper material of poarts selected.In addition ,the working temperature can reach 300℃.
4)The same rotary direction of internal rotor and outside rotor results in little wear and long loperation life .
5)The pump's flow capacity can be changed through adjusting the speed.
6)It's specilly suited to deliver high viscosity medium.
