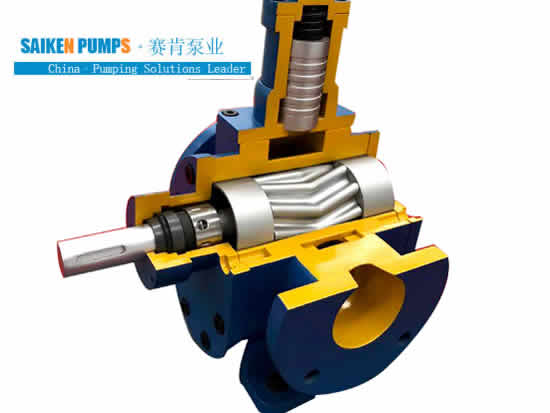

Rotary Twin Gear Pump – YCB Series
The Team of Saiken Pump feeling delighted by informing you about its unique product called YCB Rotary Twin Gear Pump. The company is one of the top manufacturer and exporter of this pump in china. Reliability and quality count at all levels and thus we follow the quality check of all our products at different platforms.It may be used for pumping oils and fuel oils such as diesel, vegetable oil, Palm Oil, kerosene, biodiesel, motor oil, and even glycerol (waste product in biodiesel process). During operation, the pump delivers quite smooth, lower noise, powerful performance with complete accuracy.
FEATURES:
Manufacturer:China Boutou saiken pumps
Manufacturer:China Boutou saiken pumps
Concept: Herringbone Gear Pump (Double Helical Gears)
Brand: SAIKEN PUMPS
Structure: Gear Pump
Pressure: Low Pressure (6-16 Kg/Cm2)
Temperature: 0°C To 250 C
Direction: Multi Direction
Speed: 740 RPM And 1440 RPM (May Vary as per the Application and Use)
Construction Available: Jacketed (YCB-G) / Non Jacketed Type
MOC: As per Application of Use (SS,C.S, C.I)
Extra Accessories: Hot Oil Circulation Pump to Keep Pump Warm for Such Special
Applications:oils and fuel oils such as diesel, vegetable oil, Palm Oil, kerosene, biodiesel, motor oil, and even glycerol,Refineries, Coal Tar, Paint,Veg.Oil, Mineral Oil, Crude Oil, Loading – Unloading & Transfer,Molasses, All Acidic Liquids, Bitumen, Lube Oil, Heavy Oil.
SPECIFICATIONS
Capacity: 0.6M /Hr to80M /Hr.
Port Size: 1″to 6″
Shaft Seal: Mechanical / Gland Puck Type
The YCB Series Rotary Twin Gear Pump is best suited for equivalent liquid without solid particles and fibres at temperature below 200 deg C and with the viscosity of 5-1500 cSt viscous liquids,If the viscosity is higher than 1500cst,need to use Rotary Twin Gear Pump - NYP Series.
