G Type Single Screw Pump

  • item no.:

    G20-1/40-1/70-1
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

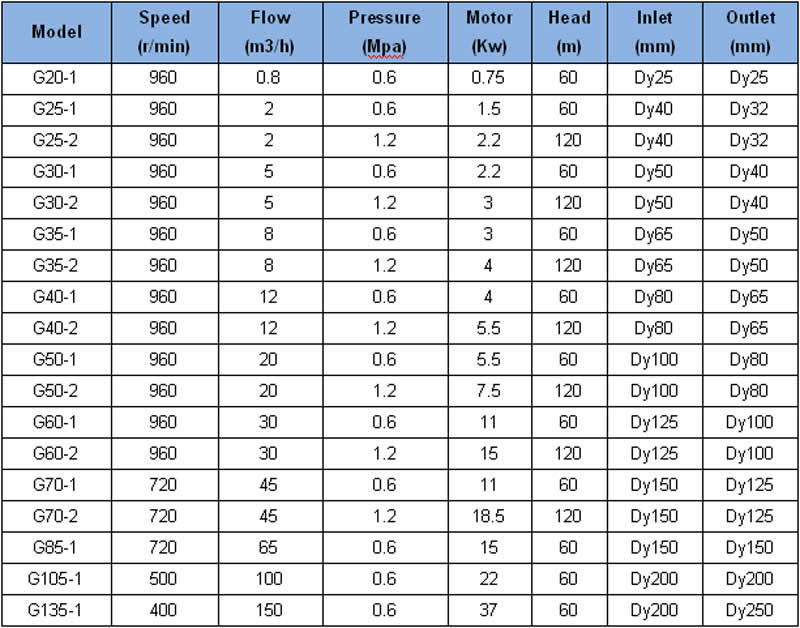

Specification:
Pressure: single stage:0.6Mpa  double stage:1.2Mpa
Max. capacity:150m³/h
Max. Viscosity:2.7*100000cst
Max. Temperature:150 degrees

Brief introduction:

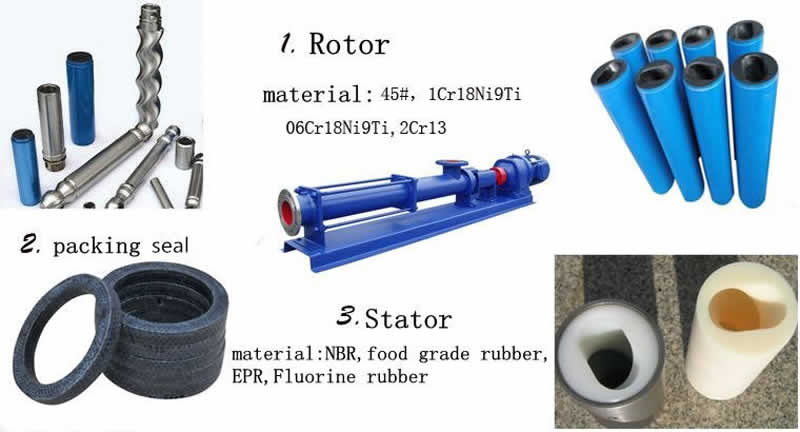

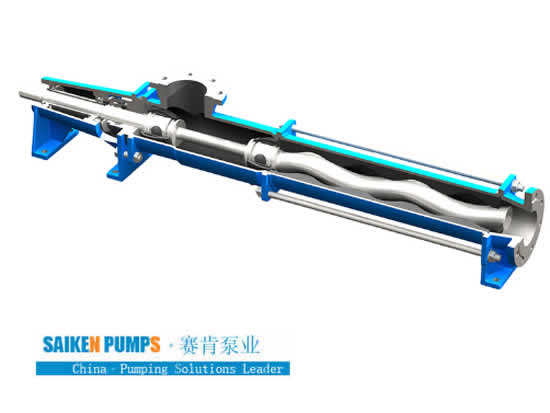

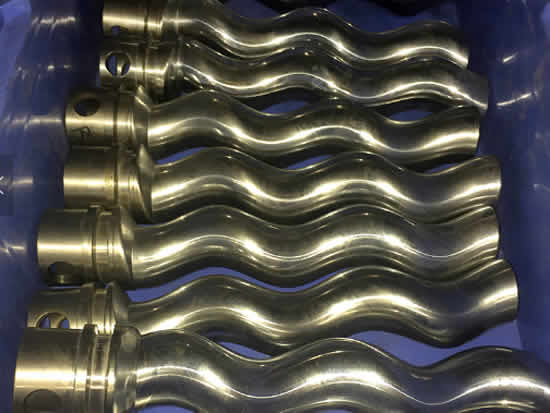

Industry self priming monoblock positive displacement mud sucking single rotary screw pump belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and the stator cavity and its meshing single-head screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.
Botou Saiken Pumps Co., Ltd is a well recognized
and accepted name in the list of G Type Single Screw Pump Manufacturer & Supplier.


G Type Single Screw Pump


G Type Single Screw Pump
