High Temperature Resistant Centrifugal Pump Installer

Self-priming Sewage Pump

  • item no.:

    W-6W-8
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
W series self-priming non-clog centrifugal Sewage pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
Self-priming Sewage Pump,non-clogging sewage pump,trailer sewage pump,Diesel driven Trash pump Manufacturer Exporter & supplier in china.

Main charactor:

1. Beautiful shape and fine structure, reliable performance;

2. With strong capacity of self-priming, no need to equip with flap valve;

3. Non-clog, and with powerful capacity of passing big solid;

4. The unique lubrication oil mechanical seal cavity makes the performance more reliable.

5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.

6. Special check valve structure can make the pump start quickly next time.

7. When operated, the pump can self-priming with gas and liquid at the same time.

8. Low rotary speed, reliable operation, long useful life, easily maintenance.

9. Advanced pressure protector make pump operate safety.

10. Very competitive price, high quality, small MOQ, fast delivery,OEM required,exporting plywood case.

Features: Solids Handling Impeller, Exclusive Abrasion-Resistant Seal, Removable Cover Plate with Easy-Grip Handle, Replaceable Wear plate, Removable Rotating Assembly.

Main using:
1. Municipal Project, Sewage Project, Instruction Project;

2. Transportation of the sewage of uptown;

3. Sewage transportation in Hospital, hotel,slaughter house,fish breeding and so on;

4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;

5. Transportation of the factory and contaminated water;

6. Sewage and deposit of water purifying system;

7. Industrial sewage of light industry,paper mill,textile,food processing plant,chemical industry,electric utility,deep mines,etc.;

8. Wine and sugar industry;

Operation condition:
1. The temperature  ≤ 80°C,the density 1.0~1.3*103Kg/m3,PH: 5~9.

2. Max diameter of solid ≤ 76.2mm.

3. Max suction lifts ≤ 3 inches or 7m.

4. solids ≤2%.

5. Max.working pressure and suction head please refer to performance curve and table.

Driven Method:

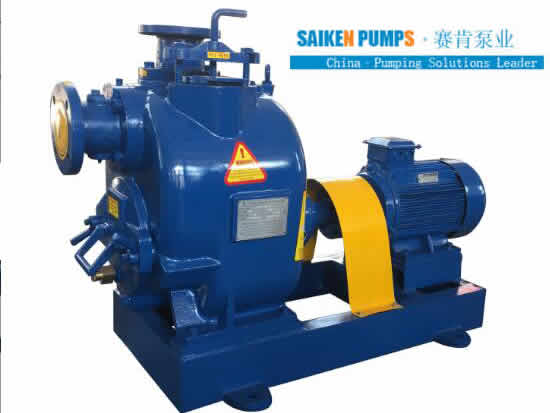

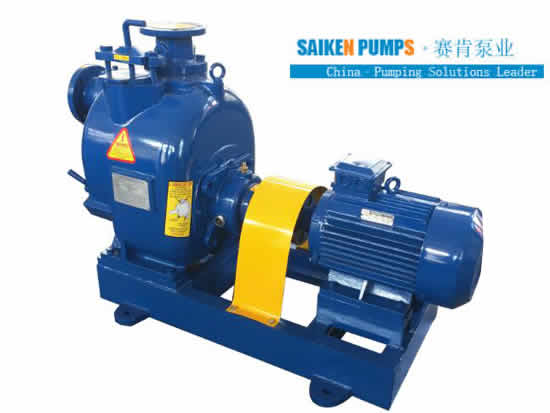

Motor drive
Cummins Diesel Engine Driven Self Priming Sewage Water Pump
Deutz Diesel Engine Driven Self Priming Sewage Pump With Four Wheel Trailer
Perkins Diesel Engine Driven Non Clogging Self Priming Sewage Pump
Carti-Pillar Diesel Engine Driven Non Clog Self Priming Sewage Water Pump
Weichai Diesel Engine Driven Self Priming Sewage Pump
One Cylinder Diesel Engine Driven Non-Clogging Self Priming Sewage Pump .

Specification:

Inlet/Outlet

2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm),10''(250mm), 12''(300mm)

Impeller Diameter

158.74mm-457.2mm

Rotary Speed

550RPM-2150 RPM

Flow Rates

8m3/h-1275m3/h 20GPM-5500GPM

Head

6m-63m

Horsepower

1HP-125HP

N.W

92KG-998KG

G.W

114KG-1066KG

Solid Passing

20.63mm-76.2mm

Material

cast iron, ductile iron, stainless steel,CD4MCU,aluminum,bronze

Diesel Driving

Water cooled or air cooled

Method of Connection

Self-priming pumps are available as basic units or may be flexcoupled,V-belt driven or engine mounted.

Drive Variation

Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor

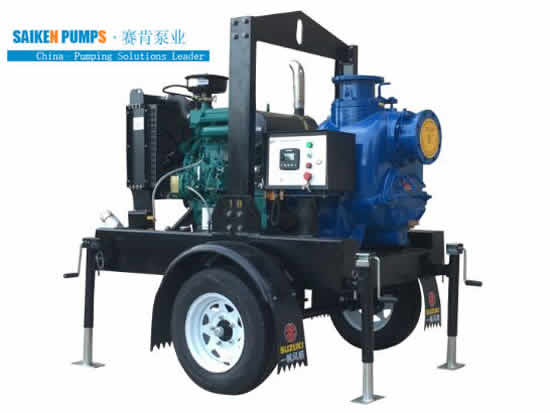

Skid Mounted on Trailer

2 wheels or 4 wheels Trailer

Package

Exporting plywood case

Certificate

CE,ISO9001-2008



Application:
Portable W Series Non Clogging Self Priming Centrifugal Trailer Pump With Diesel Engine For Agricultural Irrigation Use
Performance Parameter
MODEL
R.P.M. R/MIN
FLOW m3/H
TOTAL HEAD            m
MOTOR    HP
NET WEIGHT kg
GROSS WEIGHT       kg
MAX SOLIDS          mm
W-2
1150-2900
46
36
1 – 10 HP
92
114
44.45
W-3
650-2150
107
35
1 – 20 HP
183
205
63.5
W-4
650-1950
163
36
1 – 30 HP
259.5
280
76.2
W-6
650-1550
330
33
2 – 40 HP
364
391
76.2
W-8
650-1350
600
34
7.5 –75 HP
581
634
76.2
W-10
650-1450
775
40
10 –100 HP
635
663
76.2
W-12
650-1250
1275
42
20 –125 HP
998
1066
76.2
H-3
850-2150
85
62
1.5 –25 HP
214
225
20.63
H-4
850-2150
148
58
3 – 40 HP
272
297
28.57
H-6
850-1950
308
57
5 – 75 HP
413
437
31.75

Detailed Images:

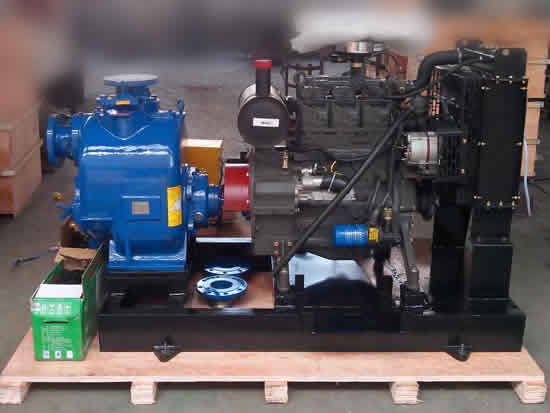

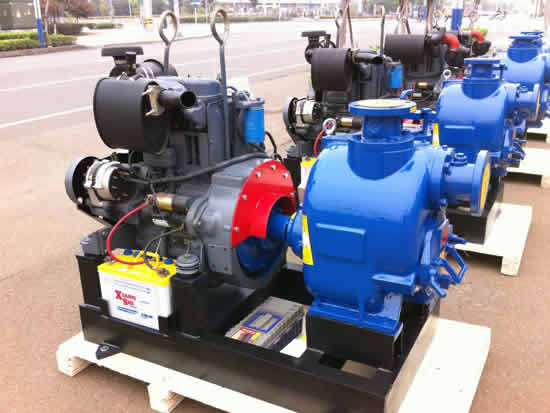

Machine Parts

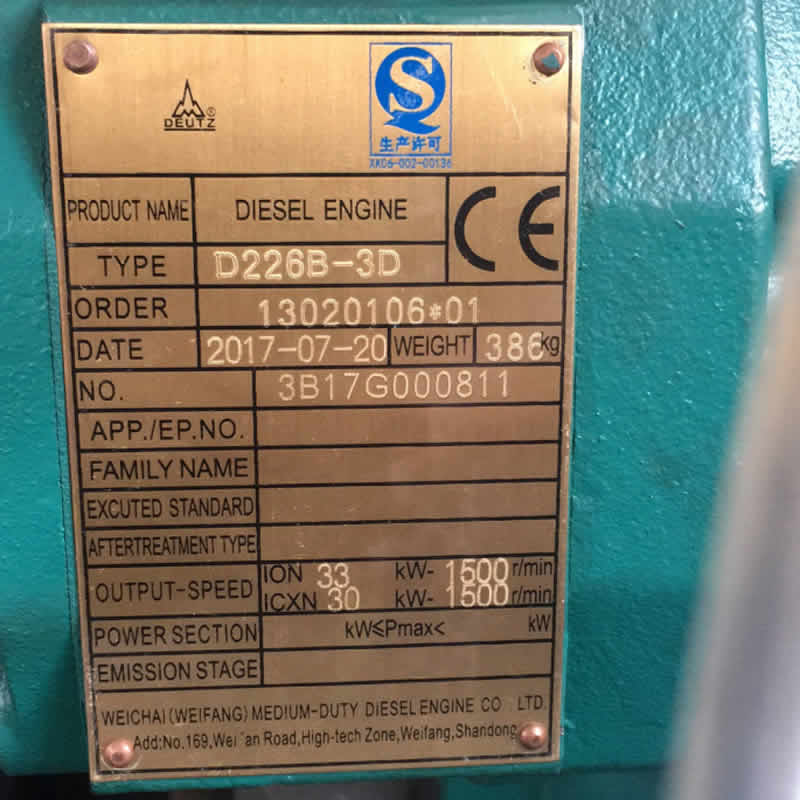

Name: Diesel engine
Brand: deutz
Original: China
Inline, 3 cylinder, four stroke, self suction, direct injection fuel system


Main Features

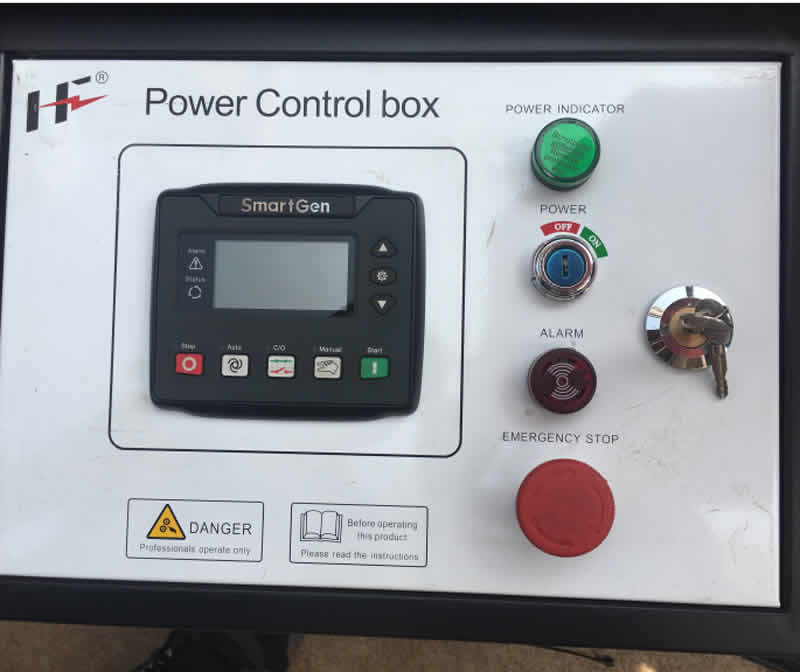

Name: Control cabinet
Brand: SAIKEN PUMPS
Original: China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.




Machine Parts

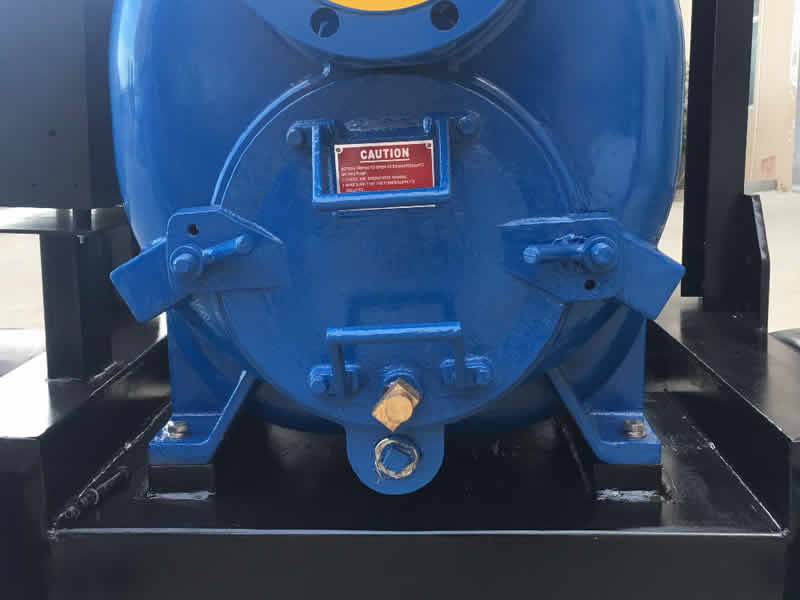

Name: Exclude sundries
Brand: SAIKEN PUMPS
Original: CHINA
Loosen the wrench on both sides to remove the blockage in the pump.




tags :
Request a free quote

  • subject :

    Self-priming Sewage Pump
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

related products
  •  Self-priming Sewage Pump

    W series Self-priming Sewage Pump Inlet/Outlet:2"-12"X OR 50mm-300mm flow:8m3/h-1275m3/h or 20GPM-5500GPM Horsepower:1HP-125HP Self-priming pumps are available as basic units or may be flexcoupledV-belt driven or engine mounted. Skid Mounted on...

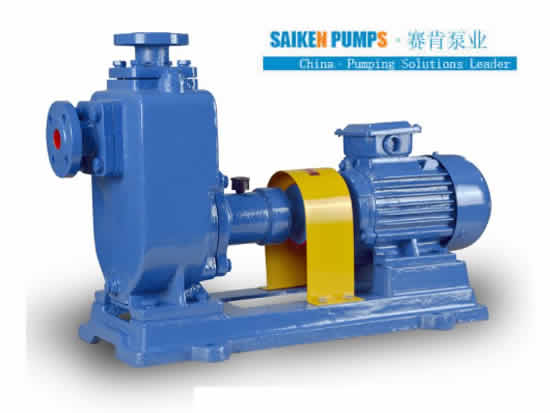

  •  ZX Type Self-priming Centrifuga
