PVDF GFRPP Self-Priming Pump

item no.:
PVDF GFRPP Self-Priming Pump
lead time:
Customer Date
product orgin:
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

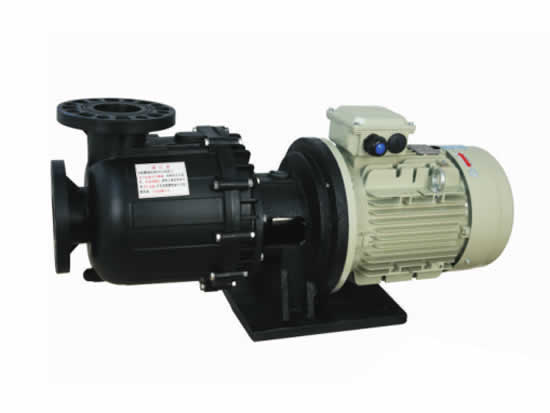

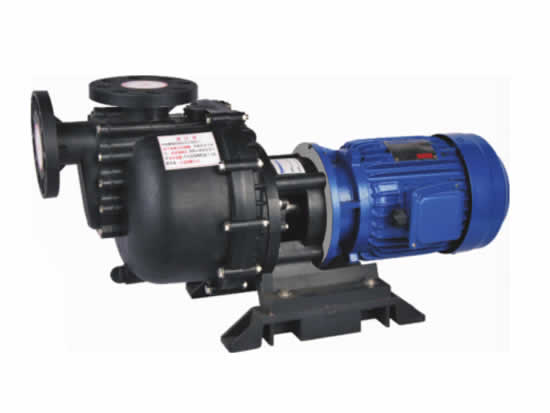

PVDF GFRPP Self-Priming Pump

Special self-priming design, strong self-priming, self-priming up to 20ft

The head can reach 40 meters, and the flow rate is 1000L/min

Choose different plastics according to the chemical nature of the transfer liquid, including GFRPP, PVDF, CPVC, polypropylene, PP

Maximum liquid temperature: GFRPP/PP 80 degrees Celsius, PVDF 90 degrees Celsius

The motor made of stainless steel 316 is connected to the standard motor along the long axis, and a Teflon sleeve is sleeved on the axis. There will be no contact between the axis assembly and the pumped chemical solvent or liquid.

The shaft seal is cooled by pumping liquid, and the shaft seal is always immersed in the liquid, so when the pump stops, crystals around the shaft seal will not form!

Pump inlet and outlet and specifications have 1-1/2" 2" 3" and other flange joints

High efficiency, low cost, no leakage, easy to maintain

Good corrosion resistance

Independent thrust bearing for maximum reliability

Liquid specific gravity up to 1.8
