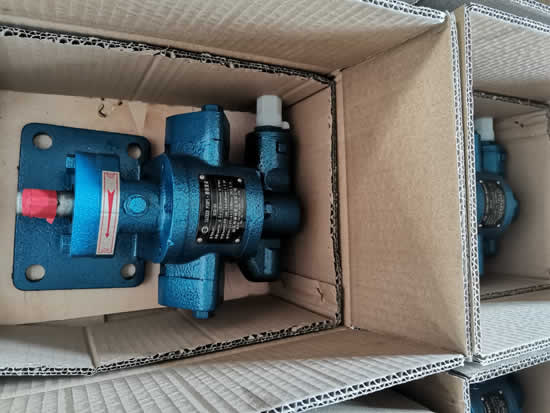

The structure and application of KCB gear pump

2021-09-03

KCB series gear pump performance range:

Pressure range: ≤1.45MPa

Flow range: ≤580m3/h

Temperature range: ≤300℃

Viscosity range: 5~1500mm2/s, reduced speed can reach 50000mm2/s.


Structural features of KCB gear pump:

This series of gear pumps are mainly composed of gears, shafts, pump bodies, valves, and shaft end seals (special requirements, magnetic drive can be selected, zero leakage structure). The gear has a higher hardness and strength after heat treatment, and it is installed in a replaceable sleeve together with the shaft to run. The lubrication of all parts in the pump is automatically achieved by using the output medium when the pump is working.

There are reasonably designed oil drain and oil return grooves in the pump. The gears bear small torque force during work, so the bearing load is small, the wear is small, and the pump efficiency is high.

The pump is equipped with a safety valve as overload protection. The total return pressure of the safety valve is 1.5 times the rated discharge pressure of the pump. It can also be adjusted according to actual needs within the allowable discharge pressure range. But note that this safety valve cannot be used as a pressure reducing valve for a long time, and can be installed on the pipeline when necessary.

Looking at the pump from the extended end of the main shaft, it rotates clockwise.
