D Type MultiStage Centrifugal Pump

  • item no.:

    D85-45X7
  • lead time:

    Customer Date
  • product orgin:

    Botou Saiken Pumps Co.Ltd
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Summarize:

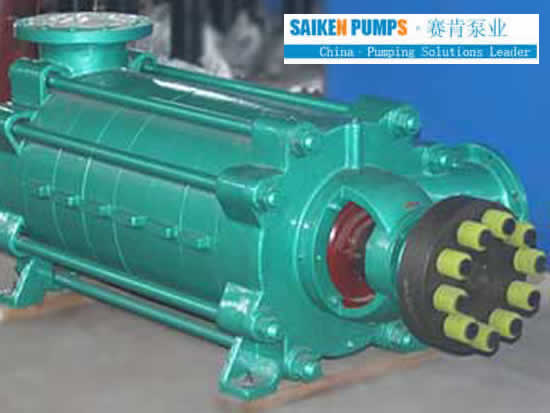

1.D Type horizontal multistage centrifugal pump is compact structure, stable running, low noise, convenient operation.

2. It is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically with the temperature range from 0°C~80°C(32°F~176°F).

3. The inlet is horizontal direction.

4. It's applicable for water supply and drainage works in mines, plants and cities.

5. Pump ends of it is supported, the casing portion is in a sectional form, it is connected to and actuated by a motor via a resilient clutch and the rotating direction of it, viewing from the actuating end, is clockwise.

6. The shaft seal of D type pump can be with soft packing or mechanical seal. The material through which liquid passes is made from cast iron or bronze or stainless steel.

7. It can deliver heat water, oil, corrosive or wearable medium by changing the material, seal or adding cooling system.

horizontal multistage centrifugal pump

Application:

The D high pressure pumps apply to transport water and other water-like liquids whose impurity content is lower than 1% and grit size is smaller than 0.1mm and whose chemical and physical characteristics is similar to clean water.

1. Water supply and discharge in factories and mines

2. Water supply and discharge in high-rise buildings

3. Long distance delivery

4. Cyclic pressurization in production

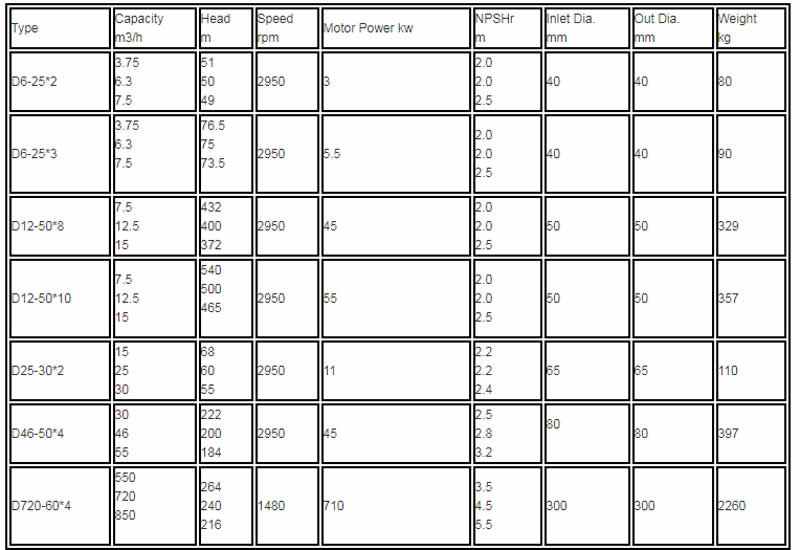

Specification:

horizontal multistage centrifugal pump
