High Temperature Resistant Centrifugal Pump Installer

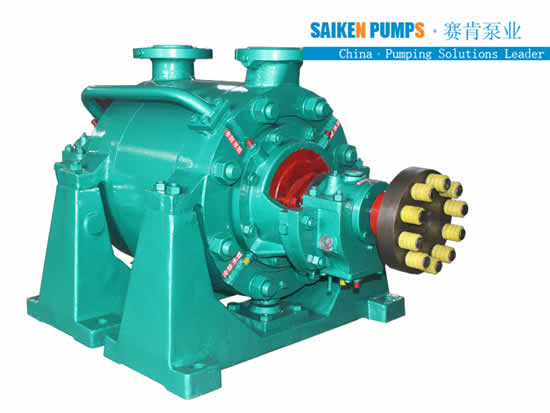

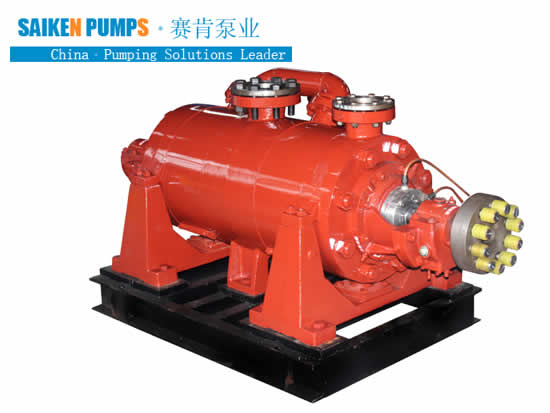

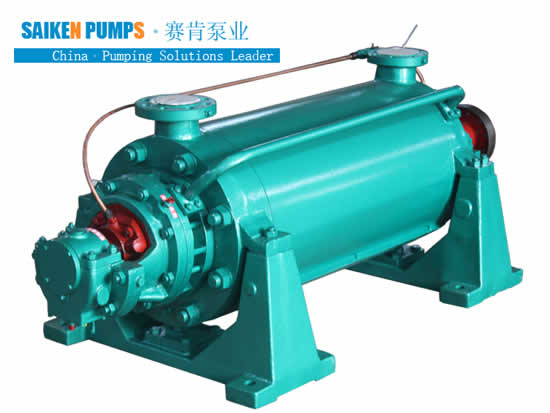

960m Head Multistage Centrifugal Pump

  • item no.:

    DG45-80*12
  • lead time:

    Customer Date
  • product orgin:

    CHINA BOTOU SAIKEN PUMPS CO.LTD
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
Meaning of Model:
Manufacturer:CHINA SAIKEN PUMPS
DG 45 – 80 x 12
DG-- Horizontal multistage centrifugal pump
45-- Rated flow 45 m3/h
80-- The single stage head is 80 m
12--Stage


PRODUCT  PURPOSE :
DG type Multistage Centrifugal Pump suitable for transporting pure water (with the contained foreign matters' content less than 1% and graininess less than 0.1mm) and other liquids of both physical and chemical natures similar to those of pure water.and is also applicable for small boiler water supply or transporting medium similar to hot water.
Performance range of model DG series:
Flow: 3.75~185m³/h        Corollary power: 4.0~400kW
Head: 69~684m                 Inlet diameter: 40~150mm

PRODUCT  PURPOSE :
DG model hypo-high-pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 160 , and is also applicable for small boiler water supply or transporting medium similar to hot water.

Performance range of model DG series:
Flow: 15~300m³ /h        Corollary power: 75~1250kW
Head: 390~1050m          Inlet diameter: 65~200mm

Materials of Construction:
●  High quality forged carbon steel for suction casing, stage section, discharge casing, impellers,
diffusers and shaft sleeves.
●  Stainless steel for impeller inter-stage bush, wear rings, diffuser sleeves and balancing plates,
discs and sleeves.

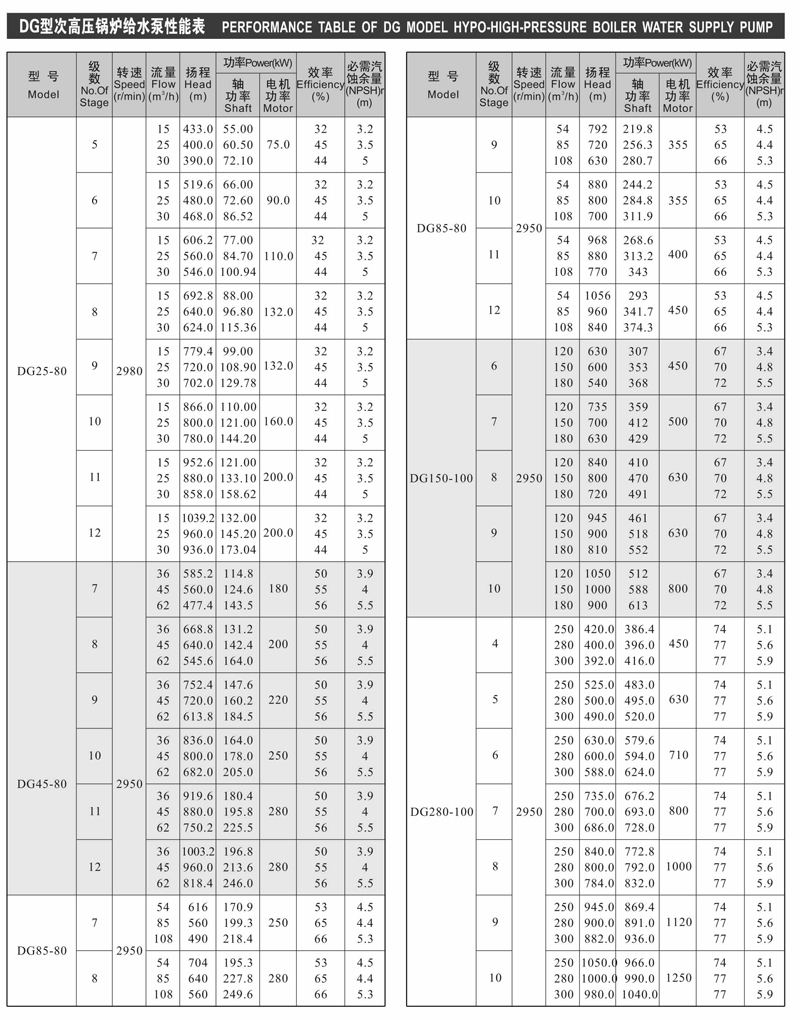

Partial model specification:

Request a free quote
