Use Of KCB Stainless Steel Gear Pump

2018-10-04

Before I talk about the use of the KCB stainless steel gear pump, let me briefly explain its working purpose so that we can understand what it is used for. We know that general stainless steel gear pumps can oils of No lubricating property, beverages, and low corrosive liquids. Optional copper gears can transport low internal point liquids, such as gasoline, benzene, etc., while KCB stainless steel gear pumps are mainly used in a variety of mechanical equipment, in the lubrication system of these equipment to transport lubricants, suitable for conveying viscosity of 5 × 10 -6 to 1.5 × 10 -3 m 2 / s (5-1500 cSt), and the lubricating oil having a temperature of 300 ° C or lower can also be transported.
MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.

[KCB stainless steel gear pumps for different industries]

KCB series stainless steel gear pump can be equipped with explosion-proof motor of the same specification according to the user's needs. The material is mainly 304, 316, 316L stainless steel. KCB SS gear pump is mainly used for transmission and pressurization in oil transportation system; it can be used for transportation, pressurization and injection in fuel system; it can be used as lubricating oil pump in general industrial field.

[structural features of KCB stainless steel gear pump]

KCB stainless steel gear pump mainly consists of gear, shaft, pump body, safety valve and shaft end seal. The gears are heat treated to have a high hardness and strength and are mounted with the shaft in a replaceable bushing. Lubrication of all parts in the pump is automatically achieved using the output medium while the pump is operating.

The KCB stainless steel gear pump has a well-designed oil drain and oil return groove, so that the gear can withstand the minimum torque during operation, so the bearing load is small, the wear is small, and the efficiency is high. Moreover, the KCB stainless steel gear pump is equipped with a safety valve as overload protection. The full return pressure of the safety valve is 1.5 times the rated pressure of the pump. It can also be adjusted according to actual needs within the allowable discharge pressure range. However, it should be noted that this safety valve cannot be used as a pressure reducing valve for long-term operation, and can be installed separately on the pipeline when needed. KCB stainless steel gear pump is mainly used for oil flow and oil discharge in oil fields, oil depots, ports, docks, ships, etc. because

As a large flow gear oil pump, gear pump, oil pump, oil pump, crude oil pump, marine gear pump, etc., it can run at a flow rate of 1.1m3 / h to 570m3 / h pressure: 0.28MPa - 1.45MPa

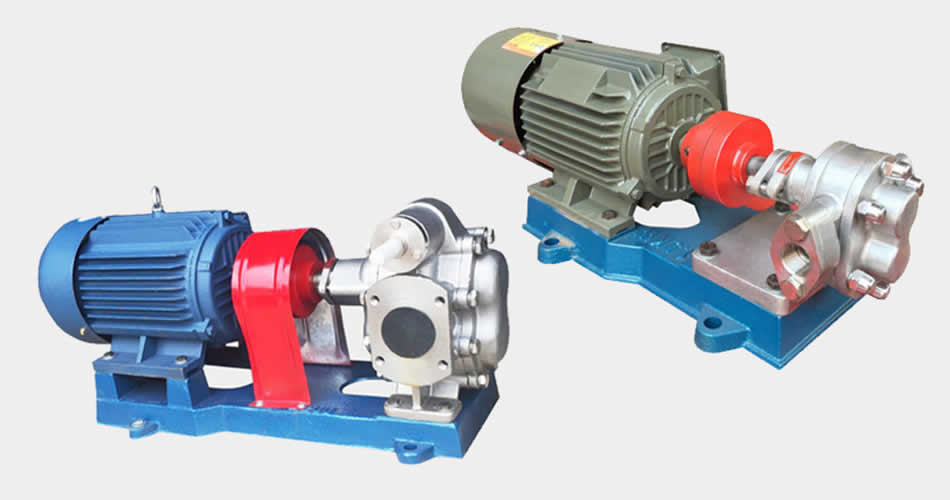

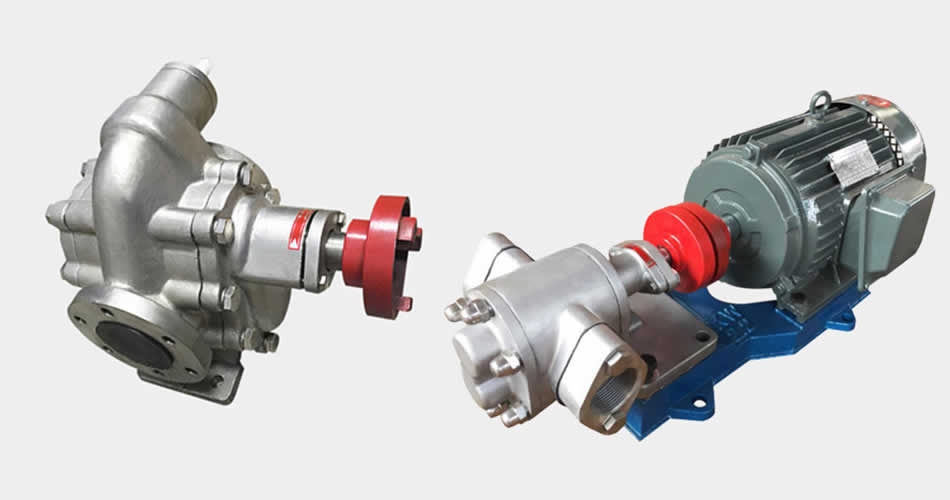

KCB Stainless steel gear pump
