The latest addition to the established Micro pump range of compact, lightweight pumps is the SKCQB Series Mag-Drive Micro pump from saiken pumps which is ideally suited to low-flow, liquid handling applications where magnetic drive, leak free pumping will be appreciated.



Available through SIKEN PUMPS Engineers, these miniature pumps can be easily incorporated into the designs of many systems and provide flow rates to 20 lit/min and differential heads up to 10 metres.



The Mag-Drive is a compact electromagnetic drive with no moving parts. the supply voltages from 220 to 380 VDC, giving an output speed range 2800 rpm.



The SKCQB Series Mag-Drive Micro pump removes the need for direct drive connection to the pump impeller and so eliminates the potential leak points associated with shaft seals used in other types of pump. This feature, combined with the pump casing passageway design, which is proportioned so fluid maintains its velocity head with minimal energy loss, contributes toward a more energy-efficient fluid delivery with lower input power required. In addition to the benefits of reliable, leak free, energy-efficient pumping, the skcqb Series is designed with fewer moving parts and this contributes towards easy servicing and a long life performance.

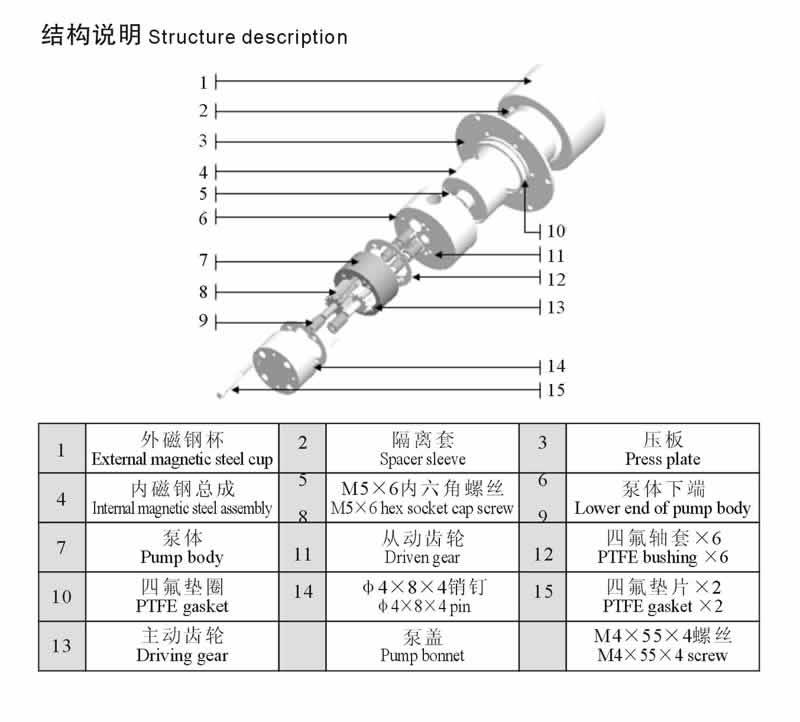

The simple construction of the SKCQB Series pump is complemented by the materials used for its key components, the housing and wetted parts are made of 304/316 stainless steel ensuring exceptional chemical compatibility, the gear are made of PPS plastic/Polyether ether ketone

, abrasion resistance and long service life, even when operating in challenging applications.



Application:

Used for assort liquids sampling, pharmacy, metering, cooling, dispatching, circulation and canned.

Widely used in pharmacy, medical, laser equipment, cooling system, foodstuff, sampling equipment, experiment, water purify, filter system, jet coder, printer, semiconductor and so on.
