CQB Stainless Steel Magnetic Driver Centrifugal Pump china

CQB Stainless Steel Magnetic Driver Centrifugal Pump china

item no.:
NYP111/52/160/7.0
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

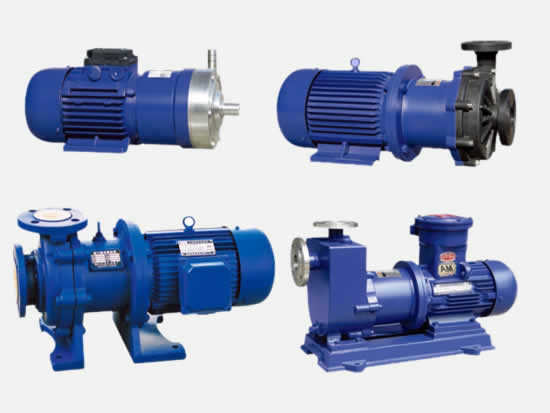

CQ、CQB、CQB-G、CQB-F、ZCQ Series Magnetic Driver Centrifugal Pump
(Magnetic coupling pump) is a new product with the working principle of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti corrosion, with the performance up to the advanced level of the same products both at home and abroad.

It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps. As being made of anti- corrosive and highly strong engineering plastic, rigid ceramic and stainless steel, it holds a good anti-corrosion performance and can have the medium being transported free of pollution.

The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance and can be used to pump acids, alkali, oils,

rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che- mical industry, pharmacy, petroleum, electric plating, food,

movie and photograph development, scientific research organ, national defense industry etc. trades, especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.

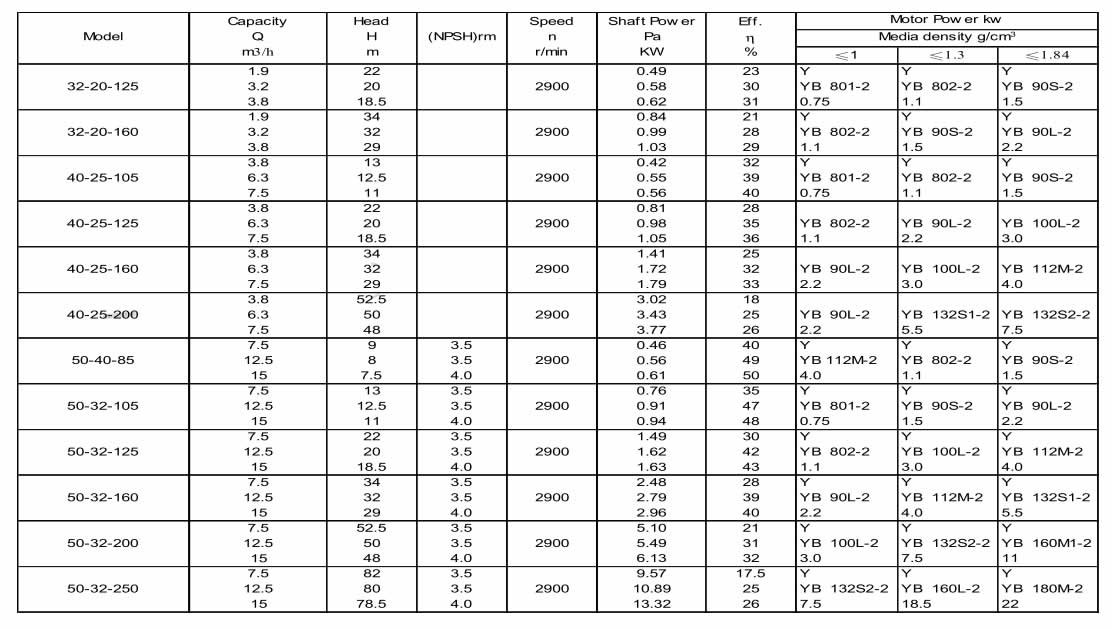

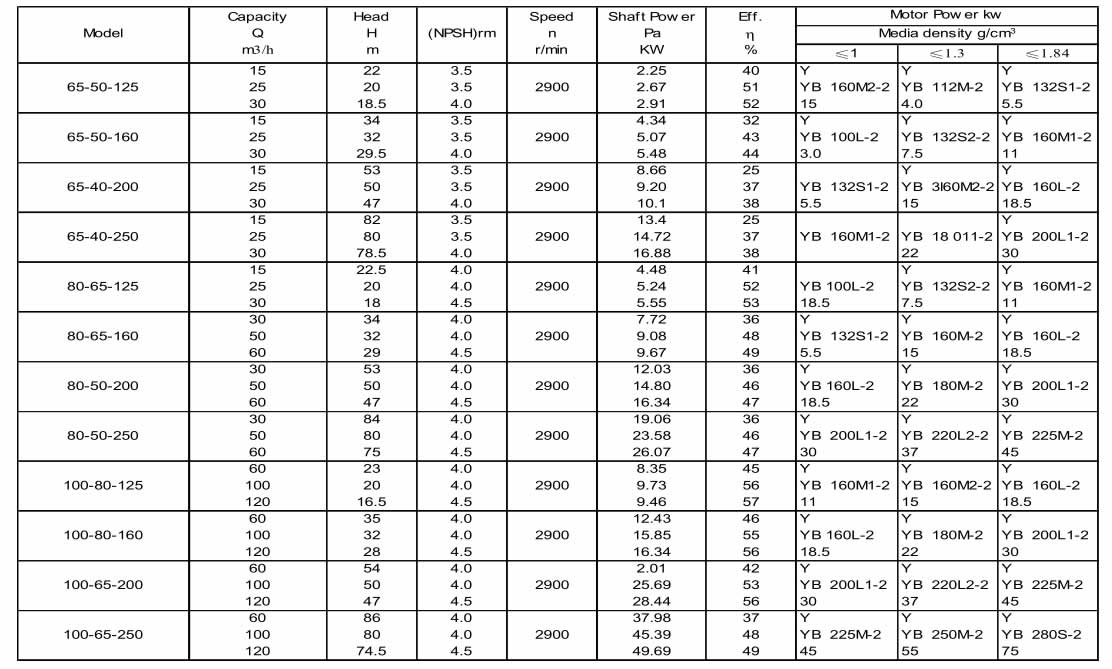

CQ(B)-G(F,L)80-65-160A

CQ — Light Duty Magnetic Centrifugal Pump

CQB — Heavy Duty Magnetic Centrifugal Pump

G — High Temperature

F — Fluoroplastics Lined

L — Vertical In-line

80 — Suction Dia. (mm)

65 — Discharge Dia. (mm)

160 — Impeller Dia. DN (mm)

Variations:A — Impeller

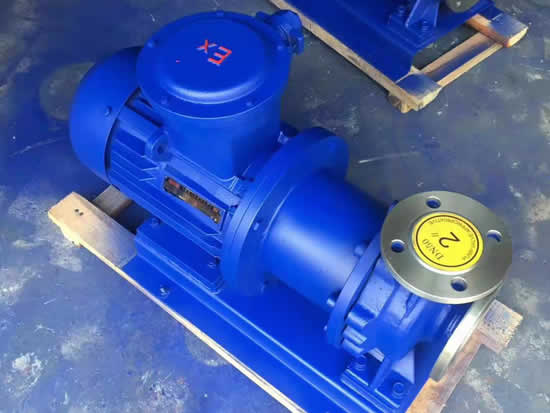

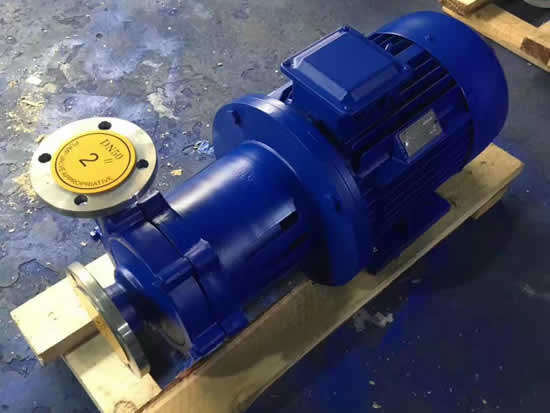

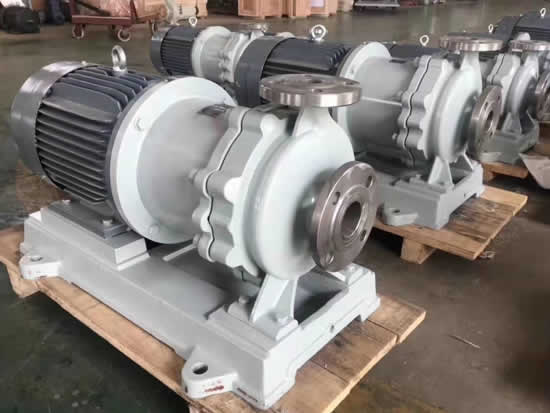

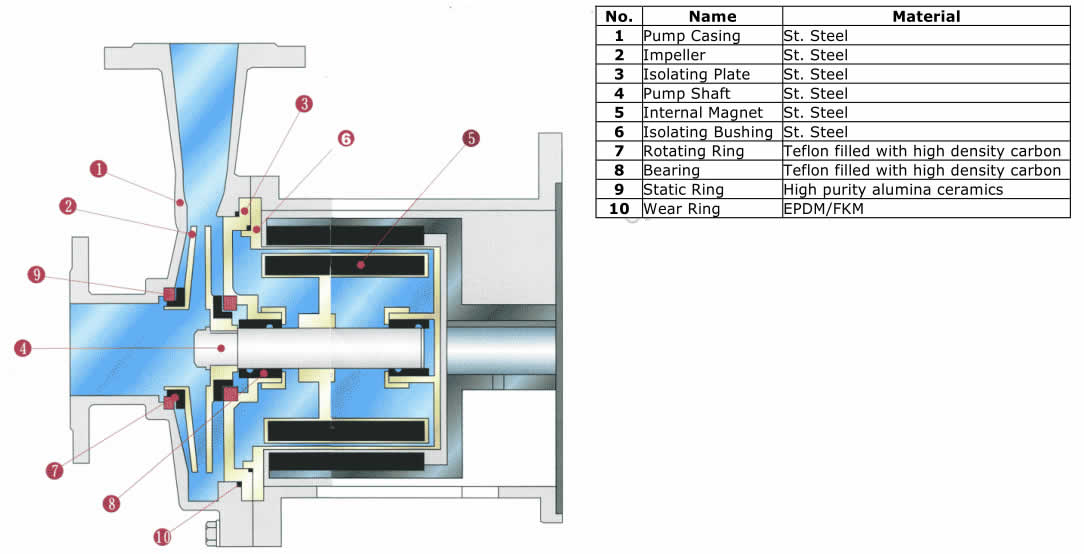

CQB heavy type stainless steel Magnetic Driven Centrifugal Pump

Perfect anti-corrosion performance shall be ensured by utilizing materials of Stainless Steel SS304/316L,

SUS304/316L for pump casing and liquid Wetted parts

● Seal Ring: FKM or Teflon.

● Bearing: Perfect self-lubrication obtained from graphite M106K bearing plus the twin-screwed

oil lubrication grooves.

● Bearing housing.

● Shaft Sleeve: Made of Tungsten Carbide, wearable and reliable for long life operation.

● Shaft: High quality material for high temperature and anti-corrosion.

● Internal Magnetic Assembly: Strong magnetic steel to ensure sufficient torque.

● Isolating Bushing: Strictly tested high quality steel.

● Exterior Magnetic Assembly: Strong magnetic steel coated with anti-corrosive material.

● Connection Frame: Cast iron.

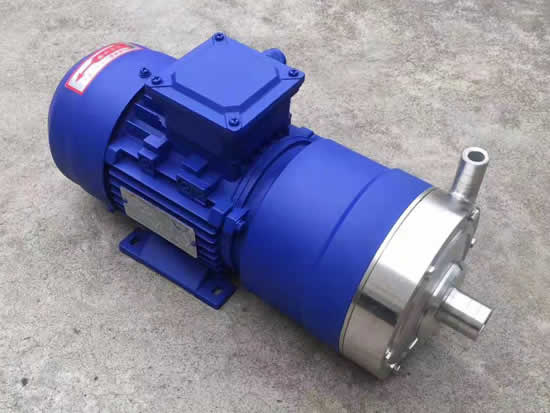

CQ light-duty stainless steel Magnetic Driven Centrifugal Pump

The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance and can be used to pump acids, alkali, oils,

rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che- mical industry, pharmacy, petroleum, electric plating, food,

movie and photograph development, scientific research organ,national defense industry etc. trades, especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.

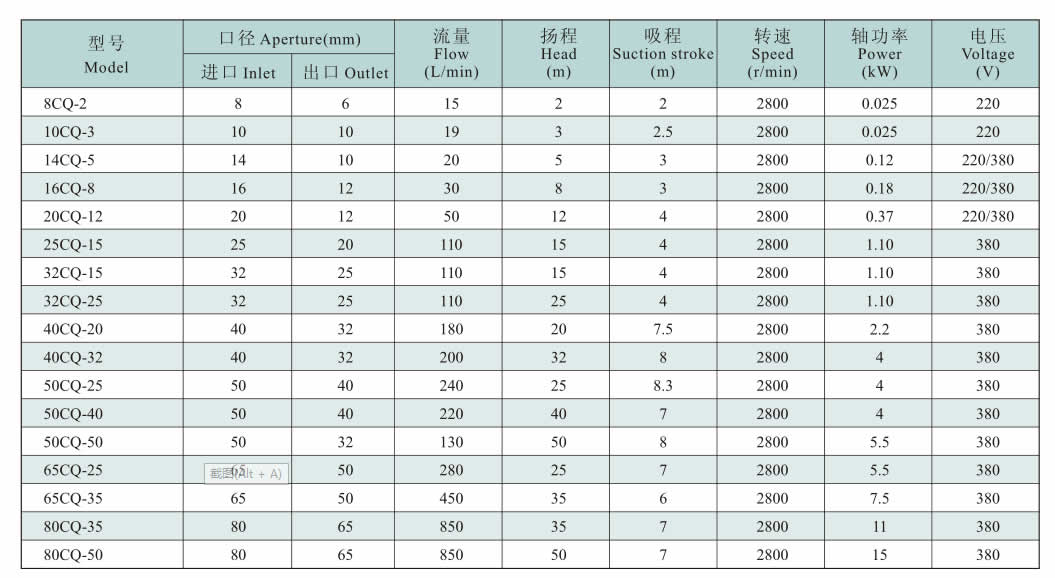

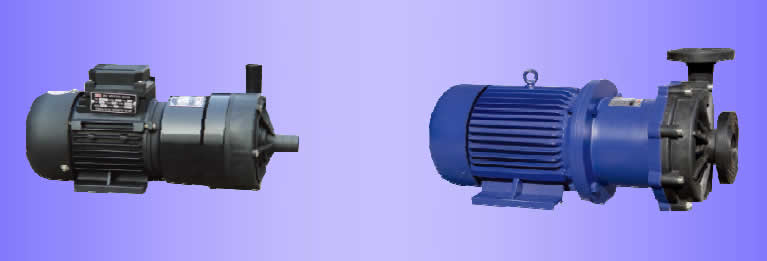

The magnetic pump can be PP plastic and stainless steel according to the material,
PP plastic (polypropylene) pump model: 8CQ-2, 10CQ-3, 14CQ-5, 16CQ-8, 20CQ-12, 32CQ-15,32CQ-25, 40CQ-20, 50CQ-25, 50CQ-32

Stainless Steel pump model:16CQ-8, 20CQ-12, 32CQ-15, 32CQ-25, 40CQ-20,

40CQ-32, 50CQ-25, 50CQ-40, 50CQ-50, 65CQ-25, 50CQ-25,65-35, 80-35, 80CQ-50

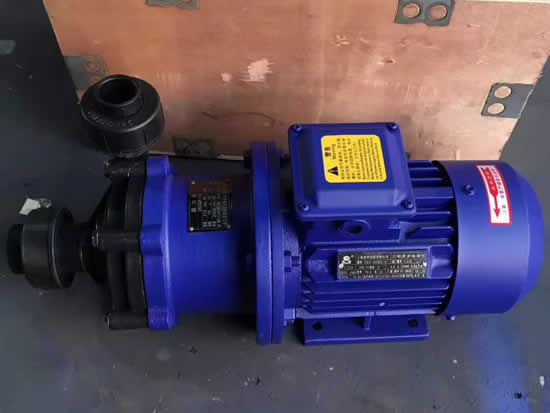

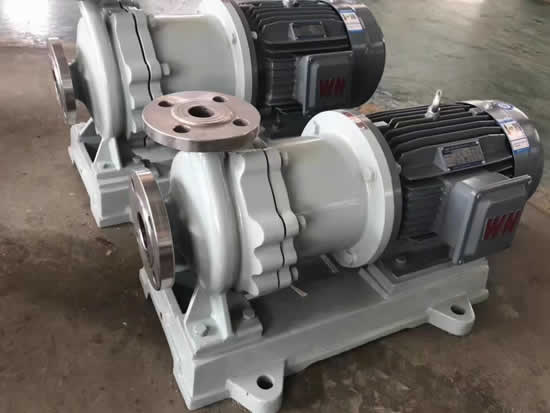

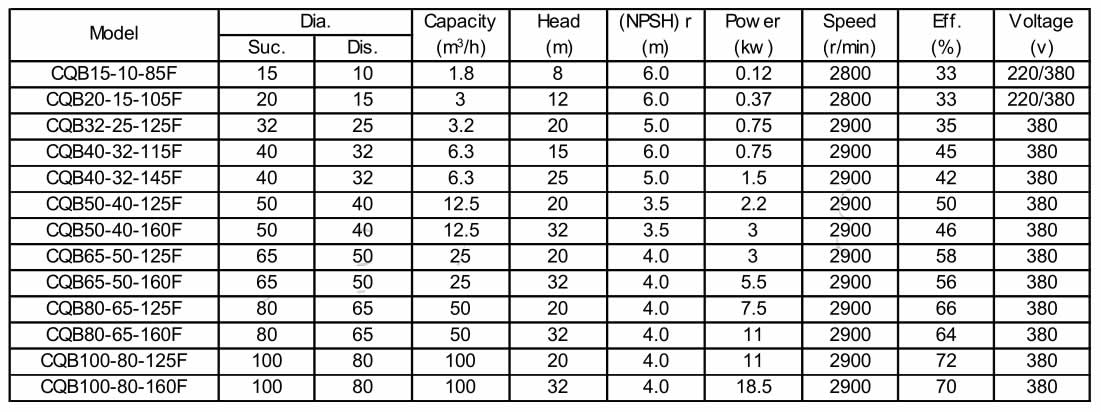

CQB-F PP fluoride plastic magnetic driving centrifugal pump

Dynamic Ring: Replaceable, quick & easy.

● Impeller: Injection molded with fluoride plastic, smooth passageway with efficient hydraulic per-formance.

● Internal Magnet Assembly: Strong magnetic steel coated with reliable anti-corrosion material while ensuring sufficient torque.

● Shaft: Silica carbide, wearable, anti-corrosive and high temperature applicable.

● Shaft Sleeve: Graphite M106K, perfect self-lubrication, reliable for long life operation.

● Static Ring: Wearable with high rigidity.

● Seal Ring: FKM or Teflon.

● Pump Casing: Cast iron outer casing with fluoride plastic injection molded inner casing.

● Isolating Bushing: Injection molded with fluoride plastic, high strength without vortex loss.

● Exterior Magnetic Assembly: Strong magnetic steel coated with anti-corrosive material.
