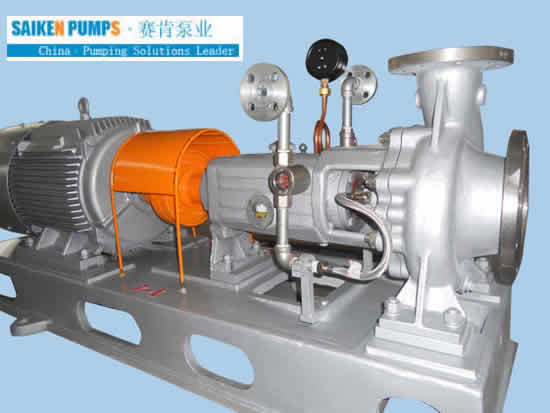

Stainless Steel Chemical Process Pump

item no.:
HCZ50-200
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co.Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Application:

The series of Stainless Steel Chemical Process Pump could transport liquid with any temperature,

including corrosive liquid or non corrosiveness, clean or with solid liquid, so especial

used in industry of chemistry or petrochemistry, oil refineries, Chemicals, paper mak-

ing and pulps, sugar and general processing industries.
Botou Saiken Pumps Co., Ltd are emerge as most prominent and leading Stainless Steel Chemical Process Pump manufacturer and exporter，The pump is also acknowledged for its sturdy construction, longer operational life, and high material strength.

Characteristic:

Capacity: 2000m 3 /h

Head: 160m

Working Pressure: 2.5 MPa

Working Temp.:-80℃～300℃

Operating stably, low NPSHr valve, high efficiency, at any time

Conveyance Medium:

1. Various kinds of organic and inorganic acids with any contents and temperatures,

including sulphuric acid, nitric acid, hydrochloric acid, phosphoric acid etc..

2. Various kinds of alkaline liquids with any contents and temperatures, including

sodium hydroxide and sodium carbonate etc..

3. All kinds of salt solutions.

4. Various kinds of petrochemical products and organic compounds as well as any

other corrosive raw materials and products in liquid forms.

Construction Illuminate:

The pressure, on the shaft sealing, been balanced by balance hole. Shaft, besides it

could be used for packing sealing (cooled or un-cooled), adopted to diversified con-

struction single or double end mechanical sealing (adoptable balanced type). Ball

bearing wears well; dimensions of shaft diameter suitable; operating is stability. Par-

tial pump casing is designed to double shell so as to balance radial power. Assembled

parts, which be formed of bearing frame including shaft, impeller, packing stuffing

and so on, make pump casing maintained without take down from pipeline (if used

lengthen coupling, motor needn’t remove also). Flange designed standard according

to PN16 and PN25.
