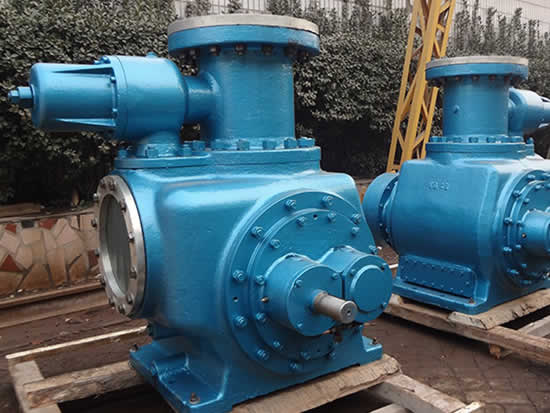

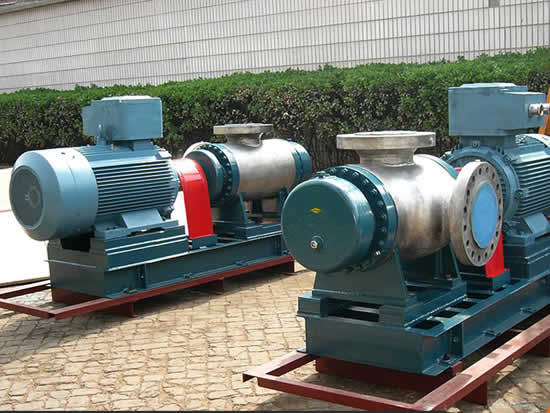

Bornemann Twin Screw Transfer Bitumen Pump

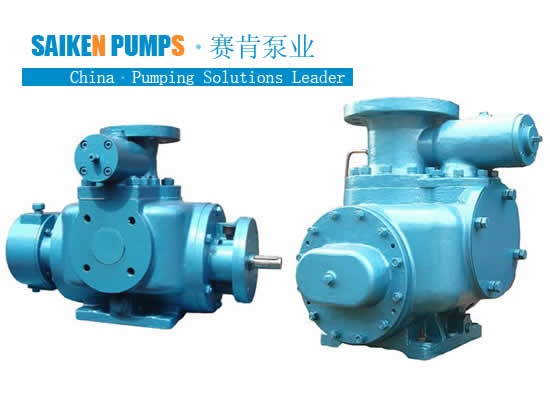

Twin Screw Pump For Transfer Bitumen

item no.:
5.0-52
lead time:
Customer Date
product orgin:
China Botou Saiken Pumps Co. LTD
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

Bornemann Twin Screw Pump Specification:

Flow Capacity:1-2000m3/h

Viscosity:1-1500mm2/s

Pressure:≤4.0 Mpa

Temperature:-15-280 degrees

Speed:≤1450r/min

we emerged as most prominent and leading Bornemann Twin Screw Pump manufacturer and exporter in china.

Twin Screw Pump Advantage:

1 Without agitation, no pulsation, flat smooth conveying various media, because the pump body structure to ensure that the work of components within the pump is always there pumping liquid as sealing liquid, all pumps are self-priming capability is very strong, and can the vapor-liquid mixed transportation.

2 Special design to ensure that the pump has a high suction performance that is a small NPSHr value.

3 Independent lubrication of the external bearing allows the delivery of various non lubricating medium.

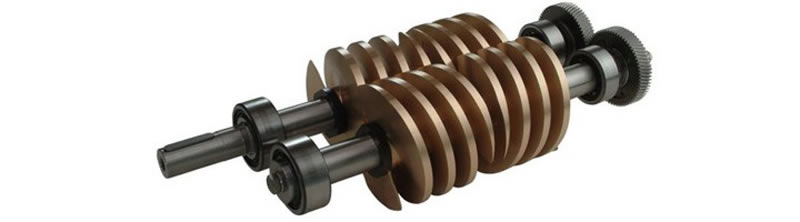

4 The use of synchronous gear transmission parts are not in contact with each other even if there is no risk of a short period of time (1~2min).

5 Horizontal vertical with a variety of structural types such as heating can transport a variety of clean solids free of low viscosity or high viscosity media with the correct material can even transport many corrosive media.

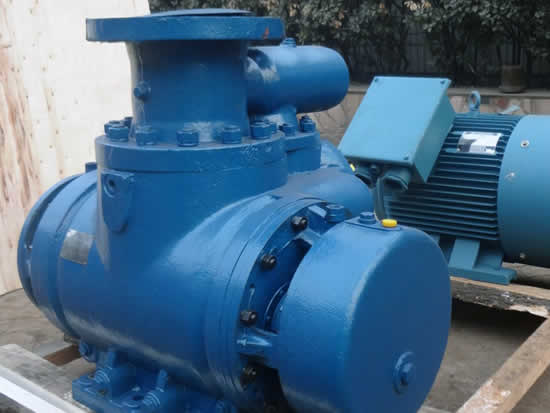

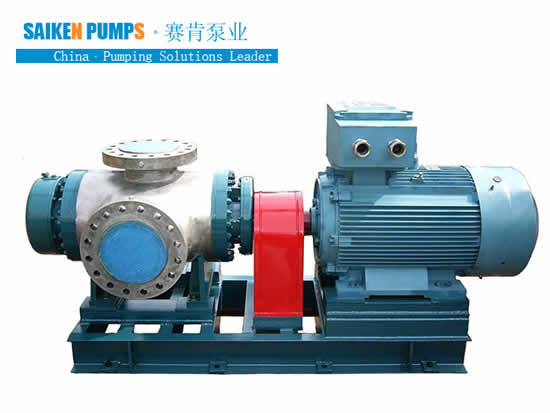

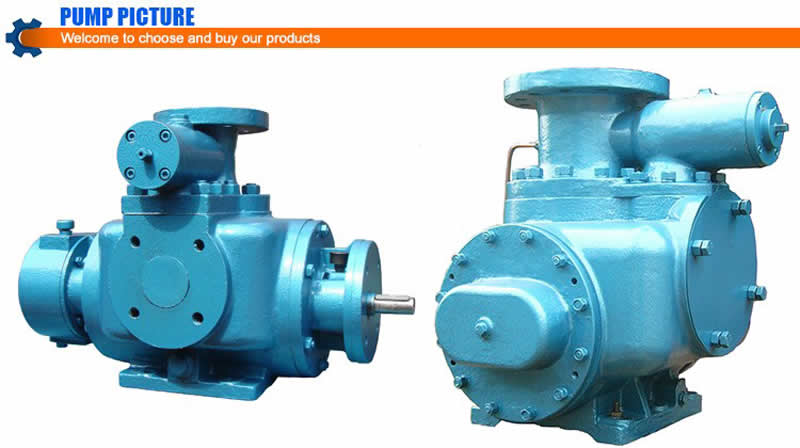

Bornemann Twin Screw Pump

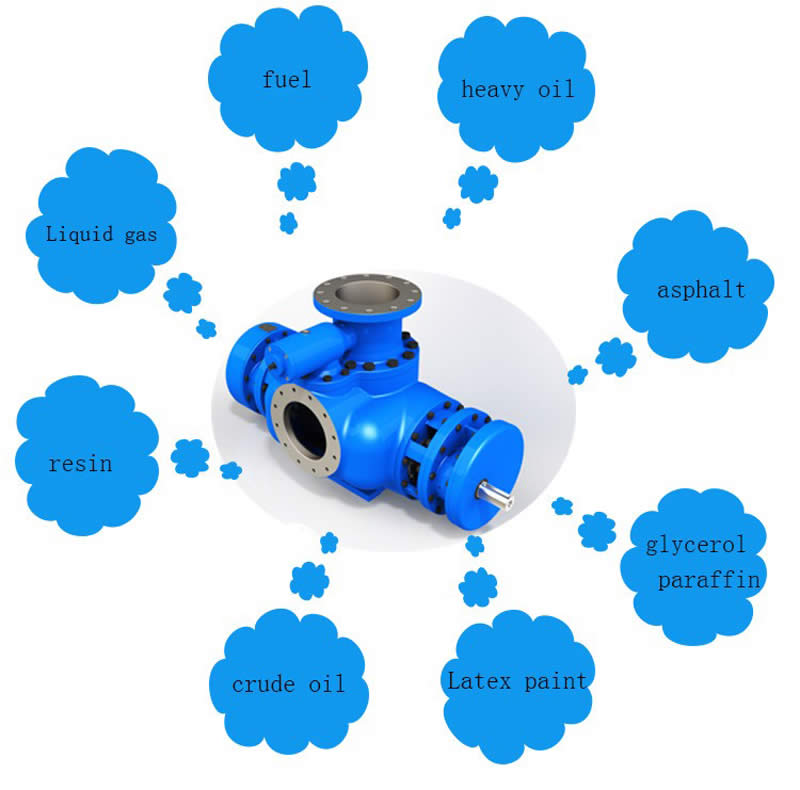

Application:

*Ship building : used for marine as cargo and stripping pump, ballast pump, lubricating oil pump for main machine, feul oil transfer and spray pump, load or unload oil pump.

*Power plant: Heavy and crude oil transfer pump, Heavy oil burning pump. Chemical industry: Transfer for variovs acid, alkali solution, resin, colour, printing ink, paint, glycirine and paraffin wax.

*Oil refinery: Transfer for various heating oil, asphalt oil, tar, emulsion, as—phalt, and also loading and unloading various oil goods for oil tanker and oilpool.

*Food industry: used for brewery, food products factory, sugarrefinery, tin fac—tory to transfer for alcohol, honey, sugar juice, toothpaste, milk cream, soysauce, vegetable oil, animal oil and wine.

*Oil field: Transfer for various oil goods and crude oil and etc.

It is necessary for users to provide required data and information required by the “data & information needed for selecting pumps” when pumps are selected.

DATA & INFORMATION NEEDED FOR SELECTING PUMPS

Medium
Medium viscosity	mm2/s	max.		min	normally
Medium density	kg/m3	max.		min	normally
Medium tempterature	℃	max.		min	normally
Capacity	m3/h	max.		min	normally
Inlet pressure	Mpa	max.		min	normally
Outlet pressure	Mpa	max.		min	normally
Diff.pressure	Mpa	max.		min	normally
Npsh	M
Environment tepmearture	℃	max.		min	normally
Dring type
Installation position	Indoors		Outdoors
Operating state	Continuously		Discontinuously
Installation type	Horizontally		vertically
In other way

Medium

Medium viscosity

mm2/s

max.

min

normally

Medium density

kg/m3

max.

min

normally

Medium tempterature

℃

max.

min

normally

Capacity

m3/h

max.

min

normally

Inlet pressure

Mpa

max.

min

normally

Outlet pressure

Mpa

max.

min

normally

Diff.pressure

Mpa

max.

min

normally

Npsh

Environment tepmearture

℃

max.

min

normally

Dring type

Installation position

Indoors

Outdoors

Operating state

Continuously

Discontinuously

Installation type

Horizontally

vertically

In other way

TWIN SCREW PUMP PARAMETER TABLE:

Model	Speed:960r/min Viscosity:300-2000cst		Model	Speed:1450r/min Viscosity:1-1500cst
Model	Capacity	Pressure	Model	Capacity	Pressure
2.1-24	3.3-4.2	0.2-1.0	2.1-24	4.1-6.6	0.2-1.0
2.1-34	5.0-6.2	0.2-1.0	2.1-34	6.4-9.6	0.2-1.0
2.1-46	6.6-8.4	0.2-1.0	2.1-46	8.4-12.9	0.2-1.0
4.1/4.2-78	28.4-32.6	0.2-1.0	4.1/4.2-78	39.3-50.1	0.2-1.0
5.1/5.2-87	46.7-53.7	0.2-1.0	5.1/5.2-87	69.7-82.5	0.2-1.0
6.4/65-100	82.5-91.1	0.2-1.0	6.4/65-100	118-140	0.2-1.0
7.2/7.3-112	162.3-174.6	0.2-1.0	7.2/7.3-112	245-267	0.2-1.0
7.2/7.3-130	188.6-201.9	0.2-1.0	7.2/7.3-124	272-296	0.2-1.0
7T.2/7T.3-150	305.1-330.6	0.2-1.0	7T.2/7T.3-144	411-493	0.2-1.0
8.4/8.5-150	569.9-614.1	0.2-1.0	8.4/8.5-144	751-892	0.2-1.0
9.2/9.3-150	762.8-804.5	0.2-1.0	9.2/9.3-150	1071-1231	0.2-1.0
2.1-18	2.5-3.4	0.2-1.5	2.1-18	1.1-5.1	0.2-1.5
3.1/3.2-58	11.2-14.5	0.2-1.5	3.1/3.2-58	18.1-22.3	0.2-1.5
4.1/4.2-70	23.3-29	0.2-1.5	4.1/4.2-70	34.4-44.7	0.2-1.5
5.1/5.2-78	39.5-48	0.2-1.5	5.1/5.2-78	58.5-73.8	0.2-1.5
6.4/6.5-90	71.1-81.8	0.2-1.5	6.4/6.5-90	107-125	0.2-1.5
7.2/7.3-94	130.7-146	0.2-1.5	7.2/7.3-94	196-224	0.2-1.5
7T.2/7T.3-112	225.9-250.3	0.2-1.5	7T.2/7T.3-112	317-383	0.2-1.5
7T.2/7T.3-130	257.6-290.5	0.2-1.5	7T.2/7T.3-130	357-445	0.2-1.5
2.1-14	1.4-2.5	0.2-2.0	8.4/8.5-130	668-811	0.2-1.5
3.1/3.2-40	6.9-10	0.2-2.0	8.4/8.5-112	546-699	0.2-1.6
3.1/3.2-50	8.7-12.4	0.2-2.0	8.4/8.5-100	470-620	0.2-1.8
4.1/4.2-58	18.2-23.7	0.2-2.0	2.1-14	0.8-3.9	0.2-2
5.1/5.2-65	33.4-40.5	0.2-2.0	3.1/3.2-40	10-15.4	0.2-2
6.4/6.5-75	58-67.8	0.2-2.0	3.1/3.2-50	13.8-19.1	0.2-2
7.2/7.3-85	116-133.8	0.2-2.0	4.1/4.2-56	26.6-36.4	0.2-2
7T.2/7T.3-94	186.4-212.2	0.2-2.0	5.1/5.2-65	49.5-62.2	0.2-2
8.4/8.5-85	297.2-344.3	0.2-2.0	6.4/6.5-75	86.5-104	0.2-2
8.4/8.5-100	358.1-405.2	0.2-2.0	7.2/7.3-85	180-205	0.2-2
8.4/8.5-112	401-456.1	0.2-2.0	7T.2/7T.3-94	262-325	0.2-2
8.4/8.5-130	471.1-529.8	0.2-2.0	8.4/8.5-85	369-528	0.2-2
2.1-11	0.8/2.0	0.2-2.5	2.1-11	0.1-3.1	0.2-2.5
3.1/3.2-30	4.6-7.5	0.2-2.5	3.1/3.2-30	6.4-11.5	0.2-2.5
4.1/4.2-48	14.3-20.3	0.2-2.5	4.1/4.2-48	20.7-31.2	0.2-2.5
6.4/6.5-67	49.3-60	0.2-2.5	6.4/6.5-67	75.3-91.9	0.2-2.5
7.2/7.3-75	100-117.1	0.2-2.5	7.2/7.3-75	152-179	0.2-2.5
7T.2/7T.3-94	161.1-187.8	0.2-2.5	7T.2/7T.3-85	226-287	0.2-2.5
3.1/3.2-20	2.4-4.9	0.2-3.0	4.1/4.2-36	11.7-22.8	0.2-3
4.1/4.2-36	9.2-14.8	0.2-3.0	5.1/5.2-54	39.3-50.5	0.2-3
5.1/5.2-54	24.1-32.9	0.2-3.0	6.4/6.5/50	55.6-68.8	0.2-3
6.4/6.5/50	36.2-44.9	0.2-3.0	7.2/7.3-57	110-135	0.2-3
7.2/7.3-57	71.8-87.9	0.2-3.0	7T.2/7T.3-67	181-228	0.2-3
7T.2/7T.3-67	129.4-149.2	0.2-3.0	8.4/8.5-67	282-416	0.2-3
8.4/8.5-67	227.3-271.8	0.2-3.0	4.1/4.2-27	5.4-17.3	0.2-3.5
4.1/4.2-22	3.4-8.8	0.2-4	5.1/5.2-40	27.1-37.4	0.2-3.5
5.1/5.2-20	6.2-12	0.2-4	6.4/6.5-38	36.9-52.4	0.2-3.5
5.1/5.2-30	11.9-18.9	0.2-4	7.2/7.3-43	77.4-102	0.2-3.5
6.4/6.5-25	13-22.4	0.2-4	7T.2/7T.3-50	125-172	0.2-3.5
6.4/6.5-30	17-26.8	0.2-4	8.4/8.5-50	167-309	0.2-3.8
7.2/7.3-28	27.4-43	0.2-4	4.1/4.2-22	1.4-13.6	0.2-4
7.2/7.3-33	36.2-51.8	0.2-4	5.1/5.2-20	6.4-18.5	0.2-4
7T.2/7T.3-33	54.7-74.2	0.2-4	5.1/5.2-30	17-28	0.2-4
8.4/8.5-50	151.6-201.4	0.2-4	6.4/6.5-25	13.5-34.4	0.2-4
9.2/9.3-67	315-374	0.2-3.6	6.4/6.5-30	22.3-41.2	0.2-4
9.2/9.3-90	419-481	0.2-3	7.2/7.3-28	33.6-66	0.2-4
9.2/9.3-112	540-596	0.2-2	7.2/7.3-33	49.6-79.5	0.2-4
9.2/9.3-135	660-726	0.2-1.6	7T.2/7T.3-33	50-114	0.2-4
10.1ZK-75	573-630	0.2-3.6	7T.2/7T.3-28	26-96	0.5-5.8
10.1ZK-94	721-792	0.2-3.0	9.2/9.3-67	448-571	0.2-3.6
10.1ZK-112	890-944	0.2-2.0	9.2/9.3-90	601-735	0.2-3
10.1ZK-135	1088-1140	0.2-1.6	9.2/9.3-112	784-912	0.2-2
10.1ZK-150	1229-1279	0.2-1.2	9.2/9.3-135	950-1112	0.2-1.6
			10.1ZK-75	811-963	0.2-3.6
			10.1ZK-94	1035-1212	0.2-3
			10.1ZK-112	1284-1443	0.2-2
			10.1ZK-135	1579-1742	0.2-1.6
			10.1ZK-150	1764-1956	0.2-1.2

tags :

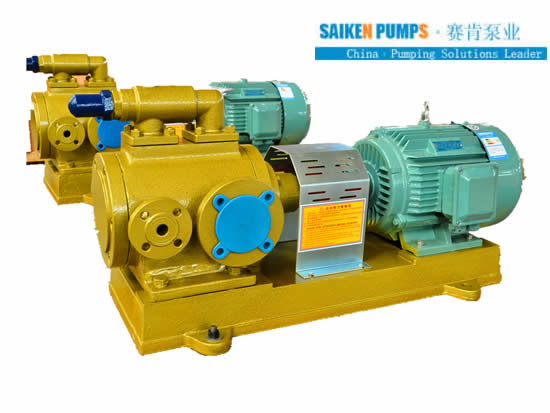

Previous：3QGB Triple Screw Asphalt Pump
