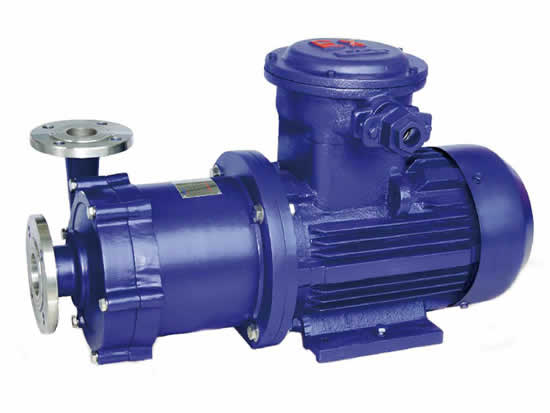

The working principle of CQB stainless steel magnetic drive pump: The driving device adopts an active magnet coupling to be directly mounted on the motor shaft, the pump chamber is completely enclosed, and the impeller with magnet on the pump shaft is indirectly driven to rotate through magnetic coupling. The structure is compact, safe and energy-saving. The sturdy and durable pump body structure, the liquid contact part is made of stainless steel, so the pump body can bear the weight of the pipeline and withstand mechanical impact.
CQ stainless steel Magnetic Centrifugal Pump usually consists of a motor, a magnetic coupling and a stainless steel pump head. The main feature of the stainless steel magnetic pump is the use of a magnetic coupling to transmit power without leakage. When the motor drives the outer magnet of the magnetic coupling to rotate, the magnetic lines of force pass through the gap and the isolation sleeve and act on the inner magnet to make the pump rotor and the motor Synchronous rotation, torque transmission without mechanical contact. At the power input end of the pump shaft, since the liquid is enclosed in a stationary isolating sleeve, there is no dynamic seal and therefore no leakage. The flow part of the CQB stainless steel magnetic pump is made of all stainless steel, which has good corrosion resistance to organic acids, organic compounds, alkalis, neutral solutions and various gases. The double spiral groove carbon graphite bearings and cemented carbide bushings Running-in, with strong wear resistance, to ensure the life of the product, is an ideal pump for leak-free transportation of corrosive media.
CQB stainless steel magnetic drive pump uses static seal instead of dynamic seal, and uses magnetic coupling to drive indirectly, which completely eliminates the trouble of dripping and does not pollute the use site. It is an ideal pump for preventing running, emitting, dripping and leakage in the chemical process, eliminating environmental pollution, creating a "leak-free workshop" and "leak-free factory", and achieving safe and civilized production.
Installation and use of CQB SS magnetic drive pump:
1. The pump should be installed horizontally instead of being erected. The plastic pump body must not bear the weight of the pipeline. For occasions with special requirements for vertical installation, the motor must face upwards.
2. When the suction liquid level is higher than the pump axis line, just open the suction pipe valve before starting. If the suction liquid level is lower than the pump axis line, the pipeline needs to be equipped with a bottom valve.
3. Check before use. The motor blades should rotate flexibly, without jamming or abnormal noise, and all fasteners should be tightened.
4. Check whether the rotation direction of the motor is consistent with the steering mark of the magnetic pump.
5. After the motor is started, slowly open the discharge valve. After the pump enters the normal working state, adjust the discharge valve to the required opening.
6. Before stopping work, close the discharge valve first, and then close the suction pipe valve.
Points to note when working CQB stainless steel magnetic pump:
1. Make preparations before overhauling and disassembling the stainless steel magnetic pump, understand the pump structure, read the relevant overhaul materials, understand the spare parts, prepare the necessary disassembly tools, and prepare the necessary safety protection tools.
2. The stainless steel magnetic pump should be overhauled by full-time personnel during the overhaul process, and the disassembly and assembly tools and safety protection equipment should be used correctly during the overhaul and disassembly process.
3. When the stainless steel magnetic pump is overhauled and disassembled, it must be handled with care and must not be disassembled forcibly, so as to avoid unnecessary equipment damage and personal injury.
4. The parts after disassembly and before assembly must be properly handled and kept to avoid damage and loss of stainless steel magnetic pump parts.
