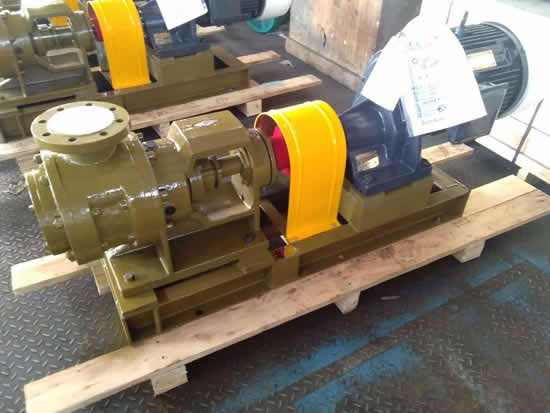

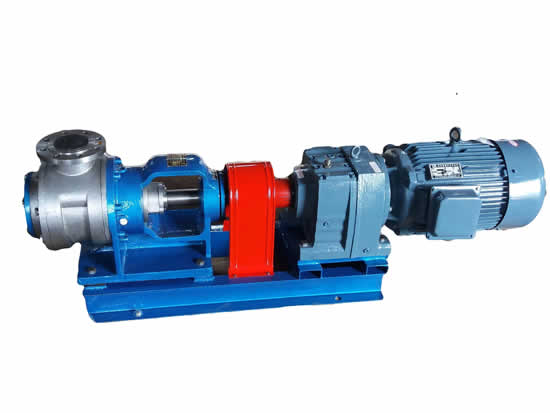

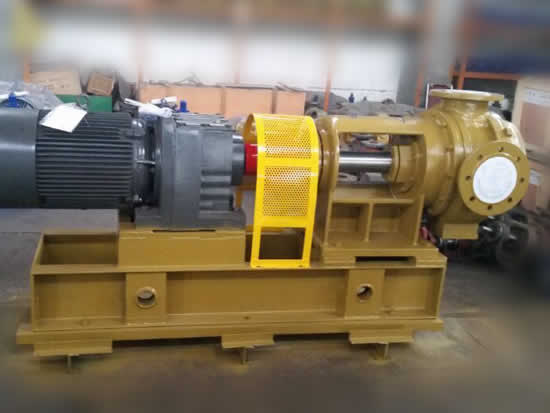

Nyp111 High Viscosity Heating Jacket Gear Oil Pump

  • item no.:

    NYP111/52/160/7.0
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
NYP High Viscosity Heating Jacket Gear Pump

Model:NYP111A/NYP30A, Capacity:18-28 m³/h, Pressure:10 Bar, Speed:300-479 rpm, Power:15 KW,Port Size:3",Manufacturer:CHINA SAIKEN PUMPS

Rotary Vane Pump, Positive Displacement Pump, Rotor Pump, Industrial Pump for Viscosity Fluids

Technical Parameters of High Viscosity Gear Pump
Model: NYP0.78/7.0/52/111/160/727/NYP1670
Rotational speed: 85r/min-1450r/min
Swept volume: 0.78L/100rev-1670L/100r
Discharge pressure: 0.4Mpa/0.6/0.8/1.0Mpa

Description of High Viscosity Gear Pump
Rotary vane pump, a kind of positive displacement pump, makes a fluid move by trapping a fixed amount and forcing that trapped volume into the discharge pipe. The flow of pump only depends on the change of chamber volume and the change frequency, rather than the discharge pressure. While working, a pair of synchromesh gears drives a pair of rotors to simultaneously rotate at opposite directions. By doing so, the volume of pump has been changed; higher vacuum degree and discharge pressure have been achieved. This lobe pump is especially suitable to transfer hygiene-degree media and highly corrosive and viscous fluids.

Application Ranges of High Viscosity Gear Oil Pump
This heavy oil transfer pump has been widely used mainly in three kinds of media. (1) Fluids that are pure and have a certain degree of viscosity, such as lube oil and crude oil. (2) High-viscosity materials that contain no particles, like rubber, asphalt, paint, adhesives, dyes, lubricants, polyols, food and medicine. (3) High-temperature and high-viscosity polymers, like PA, PB, PC, PE, PS, HIPS, ABS, PP, PET and PVA.

Attractive Advantages of Viscous Fluid Pump
The viscous fluid pump body and cover are both good quality and highly precise thanks to modern process and advanced precise-casting techniques.

We provide two kinds of sealing design. One is mechanical sealing, noted for zero leakage and suitable for lubricant media. The other type is packing sealing whose attractive characteristics include good elasticity, self-lubrication, abrasion resistance and high chemical stability. Clients can choose according to working requirements.

Nyp111 High Viscosity Heating Jacket Gear Oil Pump

Pump's specification:


Model Capacity(L/H) Pressure(Mpa) Diameter(mm) Speed(rpm) Motor Power(KW)
NYP0.78 0.5 0.8 15 960 1.5
NYP3-1.0 2 1.0 40 587 3
NYP10-1.0 6 1.0 50 228 7.5
NYP10-1.0 8 1.0 50 303 7.5
NYP10-1.0 10 1.0 50 357 7.5
NYP10-1.0 12 1.0 50 475 7.5
NYP30-1.0 18 1.0 80 305 15
NYP30-1.0 22 1.0 80 359 15
NYP30-1.0 28 1.0 80 479 15
NYP50-1.0 50 1.0 150 128 37
NYP50-1.0 80 1.0 150 208 45
NYP50-1.0 100 1.0 150 253 55
