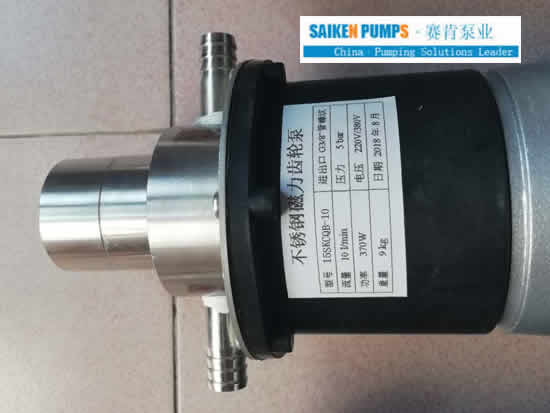

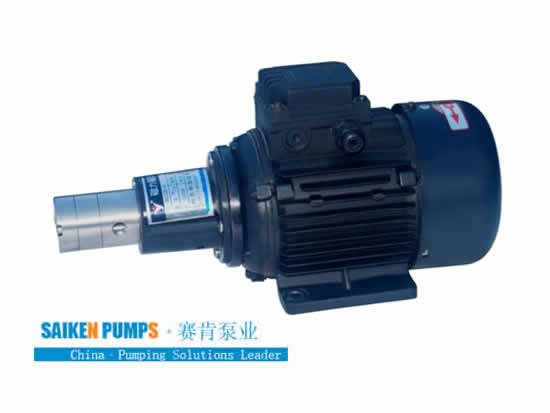

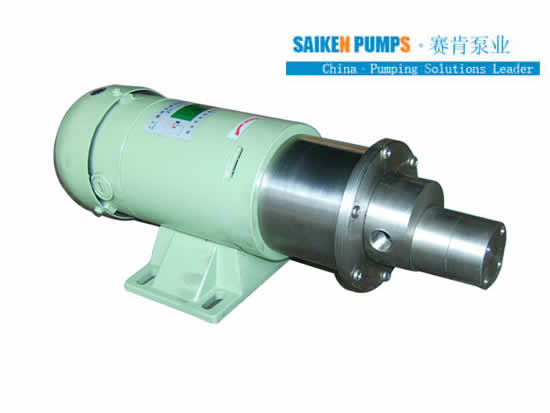

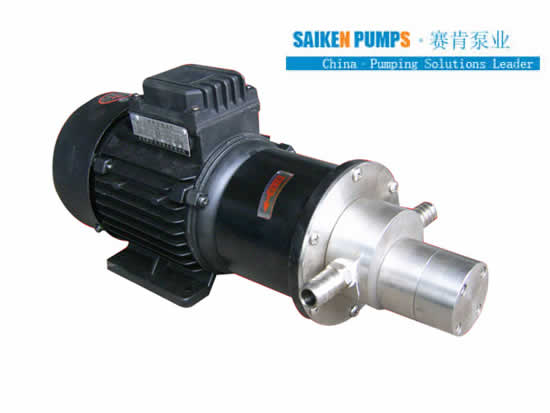

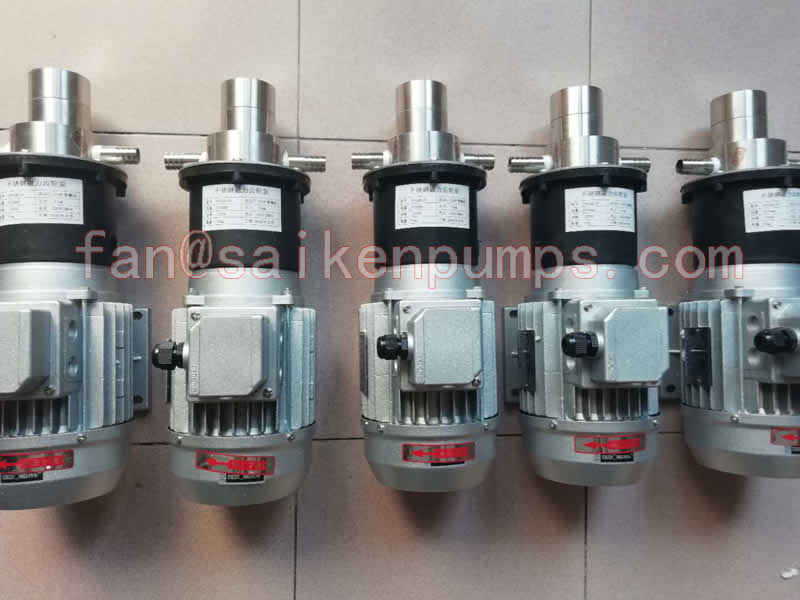

Mag-Drive Micro pump

item no.:
10SKCQB-58SKCQB-3
lead time:
Customer Date
product orgin:
Botou Saiken Pumps Co., Ltd
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

SKCQB Micro pump is low capacity Mag Drive gear pumps, leak-free, accurate, smooth, pulseless pumping and dispensing, Choice of AC, DC and programmable drives. Capacities from 3 L/min to 20 L/min, Max pressures 5 bar, Casing material: 304 or 316 stainless steel With PPS plastic gear.

Casing: 304 or 316 stainless steel

With PPS plastic gear.

Magnetically coupled gear pumps

Power：120-550W

Voltage：380V/220V/24V

Pressure：0.5Mpa

Rated flow：3-20（L/min）

speed：2800（r/min）

Hz：50/60Hz

Caliber：1/8”- 3/4”(G)

Application:

Used for assort liquids sampling, pharmacy, metering, cooling, dispatching.

Widely used in pharmacy, medical, laser equipment, cooling system, foodstuff, sampling equipment, experiment, water purify, filter system, jet coder, printer, semiconductor and so on.

Magnetically coupled stainless steel gear pumps

SAIKEN brand Micro pump combines state-of-the-art manufacturing with unparalleled engineering expertise to meet its customers’ ever-changing fluid handling needs.

Magnetically coupled gear pumps with electro-magnetic drive:

Model	Diam (mm)	Capacity (L/m)	Pressure (MPa)	Power (W)	Voltage (V)	Speed (r/mim)
8SKCQB-3	1/8	3	0.5	120	24/220/380	2800
10SKCQB-5	1/8	5	0.5	180	24/220/380	2800
15SKCQB-10	3/8	10	0.5	370	24/220/380	2800
20SKCQB-15	3/4	15	0.5	550	380	2800

tags : Magnetically coupled gear pumps with PPS plastic gear
