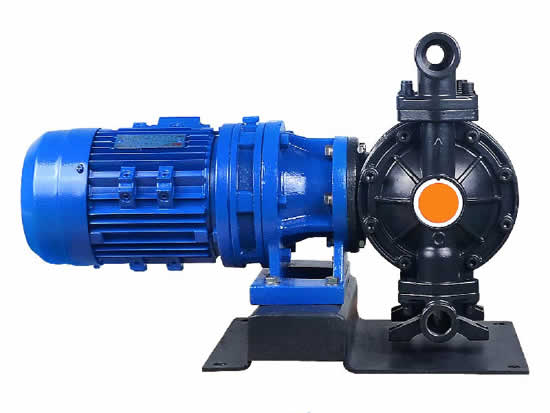

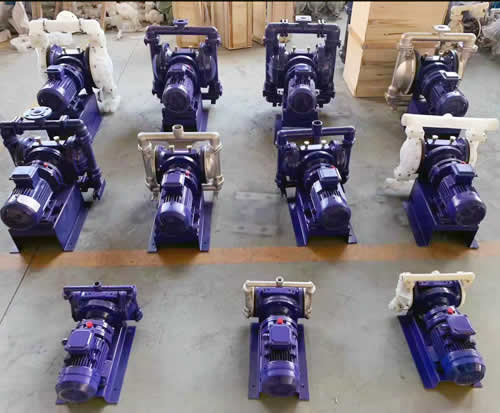

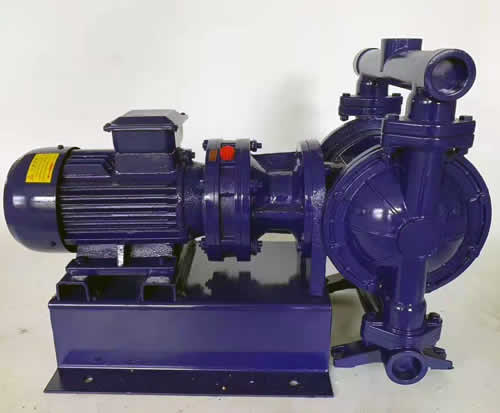

Electric Operated Diaphragm Pump

  • item no.:

    EOD PUMP
  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
This new type of Electric Operated Diaphragm Pump (EOD PUMP) has been widely applied to such industries as petrochemical, ceramic and metallurgy because breakthrough progress has been made on diaphragm material. Its features are requiring no water filling and strong self-sucking capacity.

Electric-operated diaphragm pump standard:

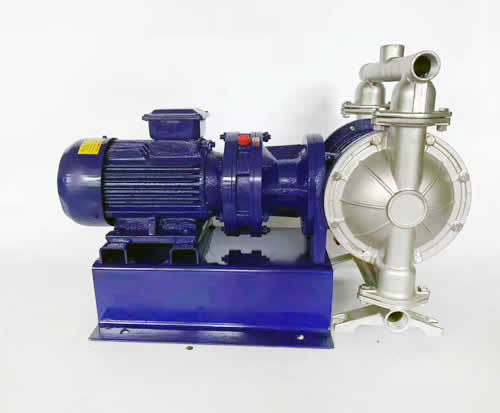

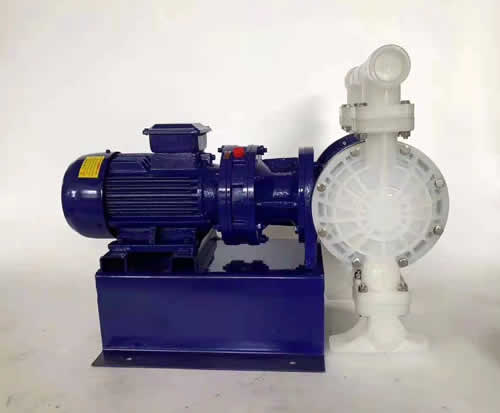

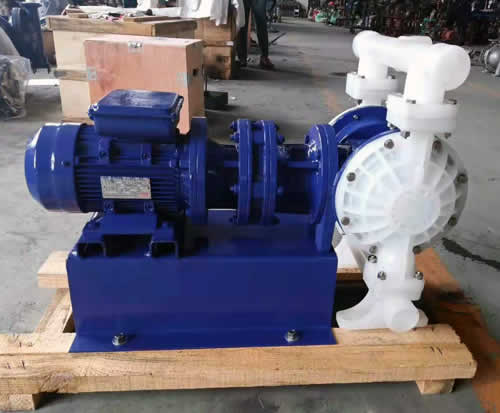

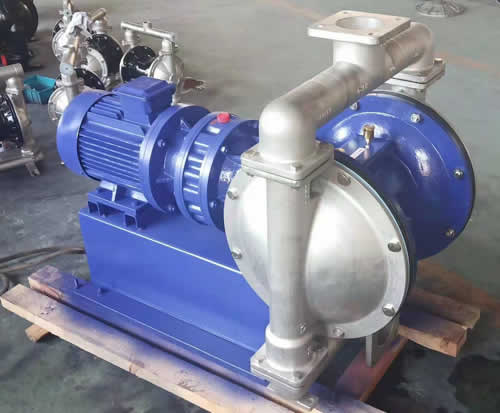

Pump material: cast steel, aluminum alloy, polypropylene(PP),SS 304,SS 316,SS 316L, PTFE.
Diaphragm Material:Santoprene,Teflon.
Valve Ball: PTFE, Santoprene.
Valve Seat: PTFE, Santoprene.

EOD Pump Size:
Pump size: 06=1/4 inch; 10=3/8 inch; 15=1/2 inch; 20=3/4 inch; 25=1 inch; 40=1.5 inch;50=2 inch; 80=3 inch; 100=4 inch; 125=5 inch.

Motor utilizes reduction gearbox to drive the diaphragms on piston shaft of left and right sides move back and forth. The motion of upper and lower four non-return ball valve diaphragms installed inside the two left and right pump chambers causes the volume inside working chamber to change, forces four non-return ball valves alternately opened and closed so as to continuously suck and exhaust liquids. Electric diaphragm pump is appropriate for low pressure occasions.
With electric-operated diaphragm pumps (EOD), electrical energy generated by a small electric motor attached to the pump causes the pumping action of the diaphragm. During operation, a cam system converts circular motion into linear motion and drives the up-and-down plunging motion of the diaphragm. EOD pumps usually have 3/8", 1/2" or 3/4" 1" 2" 3" 4" 5" inlet and outlet ports, and flow rates that range from 12.8 to 480 LPM. The pumps develop pressures ranging from a minimum of 40m to a maximum of 70 m.


Select the Diaphragm Correctly

The diaphragm is a major part of this diaphragm pump and correct selection of the diaphragm can get twice the result with half the effort. The users shall note nature of their working medium in their orders so as to provide appropriate diaphragms. Generally the diaphragms include the following types:
1. Butyronitrile diaphragm, mainly for oil-proof applications.
2. Neoprene 5031#, specially made by our company, mainly for resistance to acetone and different kinds of acid and alkaline.
3. Fluorine rubber 6021#, specially made by our company, mainly for high temperature 150℃ and resistance to methylbenzene and corrosion, but more expensive than other diaphragm types.
4. Food rubber, exclusively for transportation of food and beverage.

Electric-operated diaphragm pump 4Bar:


Model              Calibre size        Max. Flow
   LPM
   Max. Head
      m
  Outlet pressure
          Bar
  Air inlet        Motor power
            kw
SKD-10 10mm (3/8") 12.8 40 4 1/4" 0.55kw
SKD-15 15mm (1/2") 12.8 40 4 1/4" 0.55kw
SKD-25A 25mm (1“) 48 40 4 1/2" 1.5kw
SKD-32 32mm (1.2”) 48 40 4 1/2" 1.5kw
SKD-40 40mm (1.5“) 48 40 4 1/2" 1.5kw
SKD-40A 40mm  (1.5") 162 40 4 1/2" 2.2kw
SKD-50 50mm (2") 162 40 4 1/2" 2.2kw
SKD-65 65mm (2.5") 162 40 4 1/2" 2.2kw
SKD-50A 50mm (2") 245 40 4 1/2" 3kw
SKD-80 80MM (3") 245 40 4 1/2" 3kw
SKD-100 100mm (4") 245 40 4 1/2" 3kw
SKD-80A 80mm (3") 480 40 4 3/4" 4kw
SKD-125 125mm (5") 480 40 4  3/4" 4kw


Electric-operated diaphragm pump 7Bar:

Model                Calibre size        Max. Flow
   LPM
   Max. Head
      m
  Outlet pressure
          Bar
  Air inlet        Motor power
            kw
SKDH-10 10mm (3/8") 12.8 70 7 1/4" 0.75kw
SKDH-15 15mm (1/2") 12.8 70 7 1/4" 0.75kw
SKDH-25A 25mm (1“) 48 70 7 1/2" 2.2kw
SKDH-32 32mm (1.2”) 48 70 7 1/2" 2.2kw
SKDH-40 40mm (1.5“) 48 70 7 1/2" 2.2kw
SKDH-40A 40mm  (1.5") 162 70 7 1/2" 3kw
SKDH-50 50mm (2") 162 70 7 1/2" 3kw
SKDH-65 65mm (2.5") 162 70 7 1/2" 3kw
SKDH-50A 50mm (2") 245 70 7 1/2" 4kw
SKDH-80 80MM (3") 245 70 7 1/2" 4kw
SKDH-100 100mm (4") 245 70 7 1/2" 4kw
SKDH-80A 80mm (3") 480 70 7 3/4" 5.5kw
SKDH-125 125mm (5") 480 70 7  3/4" 5.5kw
