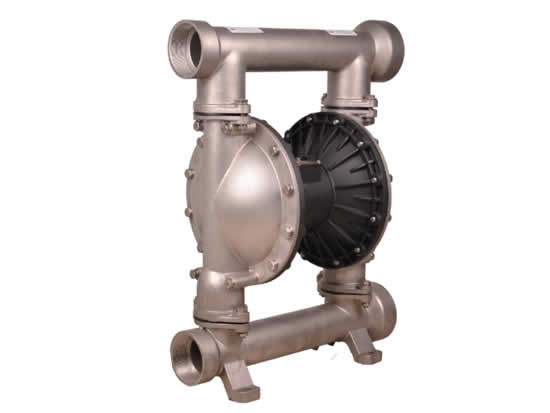

4 inch Aluminum Alloy Air Driven Double Diaphragm Pump

item no.:
4" aodd pumps
lead time:
Customer Date
product orgin:
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

4 inch Aluminum Alloy Air Driven Double Diaphragm Pump

1. Air Driven Diaphragm Pump Description

Double Diaphragm Pump Air Operated Double Diaphragm Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.

AODD pumps has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.

4" Air Driven Diaphragm Pump Parameters

Maximum Flow gpm (lpm): 150（568）

Maximum Discharge Pressure psi (bar): 120 (8.4)

Fluid Ports Inlet/Outlet (bsp): 4 inch

Air Inlet :1/2 inch

Material of Construction: Cast steel,Aluminum alloy,PP, SS, Polypropylene, Groundable, Acetal, PVDF

Maximum Solids in (mm): 1/4 (6.4)

Maximum Dry Suction Lift ft (m): 18 (5.5)

2. Air Driven Double Diaphragm Pump Applicable industries:

Used for ink printing machine, gravure printing, flexo printing and composite glue machine and the liquid with particle, all kinds of the cycle of flammable liquid delivery system.

AODD Pump data sheet:

MODEL	Max. Flow (LPM)	Max. Head (m)	Max. Lift height (m)	outlet pressure (kg）	size (mm)	lnlet calibar (inch)	particle size (mm)
SKQ-10	18.9	70	3	7	10	1/4	1.5
SKQ-15	18.9	70	3	7	15	1/4	1.5
SKQ-20	57	70	4.5	7	20	1/4	2.5
SKQ-25	57	70	4.5	7	25	1/4	2.5
SKQ25A	116	84	5.4	8.4	25	1/2	3.2
SKQ-32	151	84	5.4	8.4	32	1/2	3.2
SKQ-40	151	84	5.4	8.4	40	1/2	3.2
SKQ-50	378.5	84	5.4	8.4	50	1/2	4.8
SKQ-65	378.5	84	5.4	8.4	65	1/2	4.8
SKQ-80	568	84	5.4	8.4	80	1/2	6.4
SKQ-100	568	84	5.4	8.4	100	1/2	6.4
SKQ-125	1041	84	7.6	8.4	125	3/4	10
