China saiken pumps provide high viscosity resin delivery solution
The resin pump is a kind of high-viscosity pump. The resin is generally transfer by NYP Rotary Gear Pump or NCB High Viscosity Gear Rotor Pump. Its viscosity is high. Before choosing a resin pump, it is necessary to understand the resin and combine it with the actual working environment. select.
Media: for resin, solvents,asphalt, bitumen ......
Type: internal-gear
Other characteristics: stainless steel, cast steel, cast iron, replacement, magnetic-drive
Flow: Max.: 200 m³/h
First understand the resin, the resin is divided into natural resin and synthetic resin. Natural resin refers to amorphous organic substances obtained from animal and plant secretions in nature, such as rosin, amber, shellac and the like. Synthetic resin refers to a resin product obtained by chemical synthesis of a simple organic substance or chemical reaction of certain natural products. Synthetic resin is the main component of plastics, and is also used in coatings (film-forming materials such as Guangdong Sanying Resin and other products), adhesives, and insulating materials.

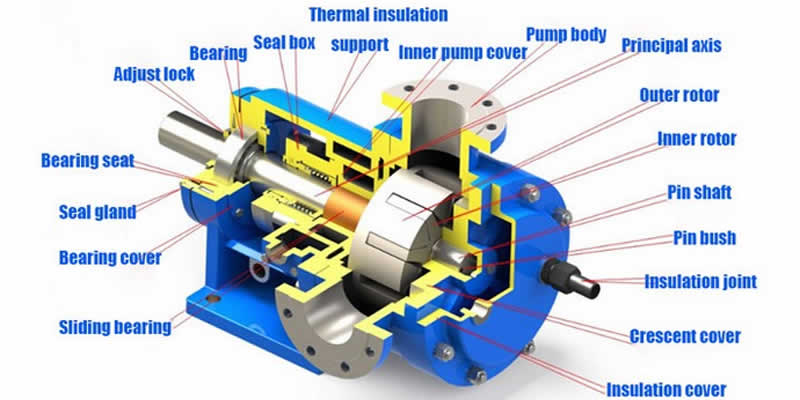

Since the resin will solidify at normal temperature, the resin pump generally has heat preservation or high temperature resistance in addition to high viscosity. NYP series high viscosity rotor pump is provided with insulation jacket on the basis of NCB series pump. The heat can be maintained by passing various heat mediums such as hot steam and heat transfer oil into the jacket cavity.
LC type Roots pump is a high-viscosity rotary pump, which is divided into two types: belt drive and gear reducer. This pump has: low number of revolutions, high efficiency, small size, large flow, low power consumption, strong self-priming ability, no need Oil extraction, easy to use and so on. Widely used in the transportation of crude oil, resins, paints, lubricants, glass glues, oleic acid, toothpaste and light alkaline (soap processing) liquids.
All of the above pumps can be used to transfer high viscosity resins, and stainless steel gear pumps can also transfer corrosive media.
