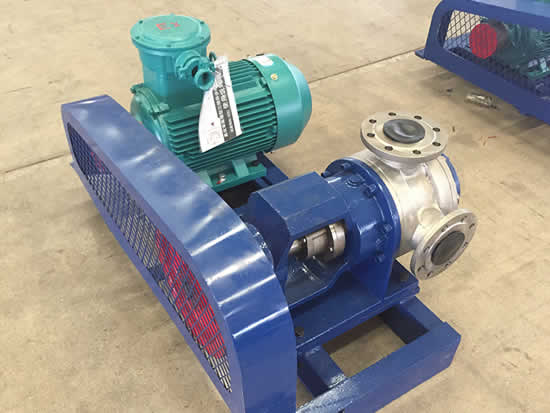

Resin transfer pump （NYP high viscosity pump, rotor pump, heat preservation jacket pump）

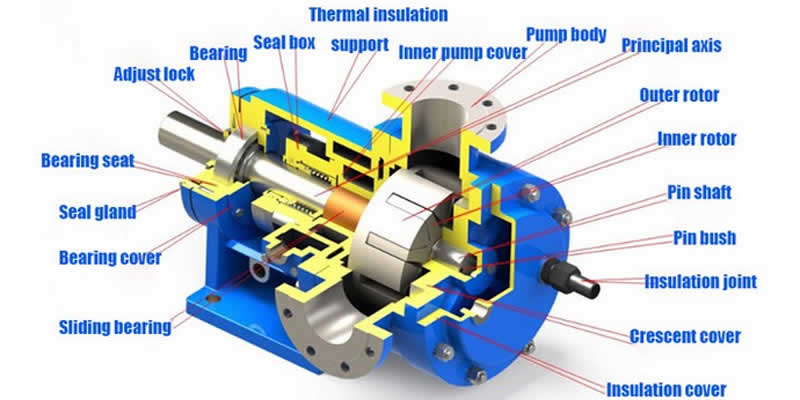

Structural features:
Structural features:
Resin transfer pump for transfer high-viscosity materials such as high-viscosity resin, polyurethane, Jumei, polyethylene, etc., especially suitable for conveying medium with high viscosity and consistency
Adjustable gear tail clearance: NYP high-viscosity pump can adjust the gear clearance according to the needs of viscosity to meet the process requirements of the pump under different viscosity. The second major advantage of the overall bearing box is that the gap can be adjusted by turning the bearing box. Simple operation without disassembling any parts of the pump.
The pump head, the pump housing, and the sealed cavity can all be provided with insulation jackets. According to the actual needs, select the location that needs insulation.
The jacket and the pump body are cast into one body, and the insulation effect is good, which can avoid various problems caused by welding the jacket.
When heating is required: heat can be passed through the jacket cavity through various heat media such as hot steam and heat-conducting oil.
When cooling is required: The pump body can be kept at a constant temperature through various coolants.
Advantages of high pressure NYP series stainless steel high viscosity pump:
(1) The liquid is conveyed smoothly, without pulsation, with small vibration and low noise.
(2) Strong self-priming performance.
(3) The correct selection of component materials can transport a variety of corrosive media, and the use temperature can reach 300 ° C.
(4) The inner and outer rotors turn the same, with less wear and long life.
(5) The speed of the pump has a linear function with the flow rate. The speed of the pump can be changed appropriately to change the flow rate of the pump.
(6) Particularly suitable for the transportation of highly viscous media.
Overview of high pressure NYP series stainless steel high viscosity pump:
NYP stainless steel high viscosity pump is a new volumetric pump developed according to the needs of the petroleum, chemical, coating, grease, pharmaceutical, dye, food and other industries. Because this product can choose different materials and structures, it is widely used Transport of media with different properties and different viscosities.
